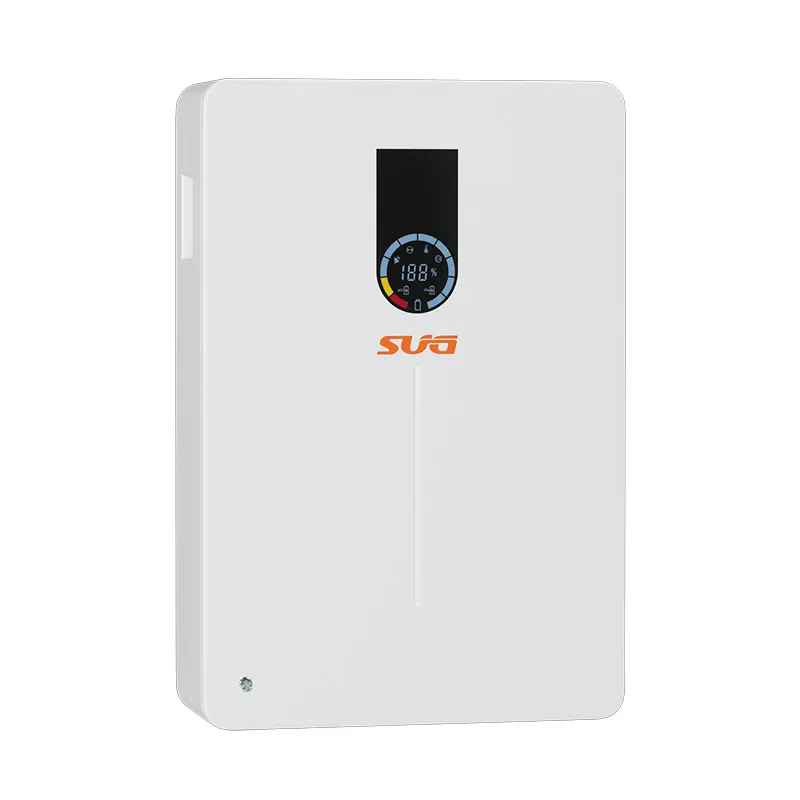

SPWN-Wall Mounted Lifepo4 Energy Storage Battery 48V 200Ah 9.6kWh
Products
Products Categories
Featured Products

SPWN-Wall Mounted Lifepo4 Energy Storage Battery 48V 200Ah 9.6kWh

48V/51.2V 100Ah/200Ah/300Ah

• BMS protection

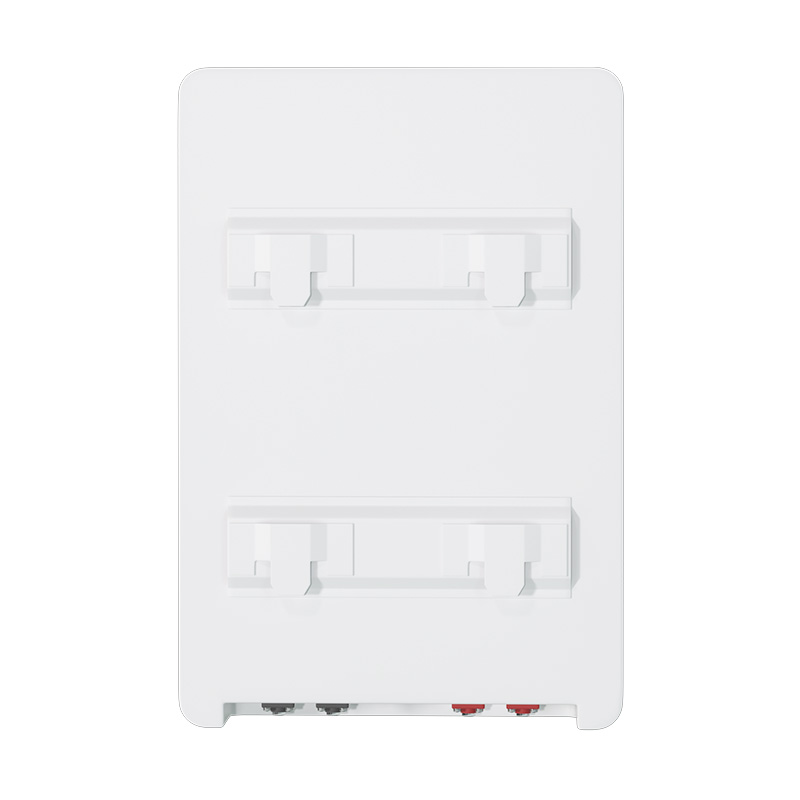

• Wall hanging design

• Home energy storage

• Intelligent communication

    Product features

    Grade A LiFe PO4 cell
    Parallel support for 15PCS
    Compatible with multiple inverter brands
    6000 cycles @ DOD80%
    Bluetooth/WI FI optional
    LCD color display screen
    BMS 100A/ 150A/200A optional

    Application Area

    ※ Energy storage system, control system, alarm system, power system, database
    ※ Emergency lighting system, emergency power supply, UPS
    ※ Telecommunications, communication, and fire protection

    Product Parameters

    Model

    SPW-A-48100

    SPW-A-48200

    SPW-A-48300

    SPW-A-51.2100

    SPW-A-51.2200

    SPW-A-51.2300

    Standard voltage

    48V

    48V

    48V

    51.2V

    51.2V

    51.2V

    Standard capacity

    100Ah

    200Ah

    300Ah

    100Ah

    200Ah

    300Ah

    Rated capacity

    4.8kWh

    9.6kWh

    14.4kWh

    5.12kWh

    10.24kWh

    15.36kWh

    Working voltage

    40.5-54V

    43.2-57.6V

    Standard charging current

    50A

    150A

    50A

    150A

    Standard discharging current

    100A

    200A

    100A

    200A

    Suggested DOD

    0.8

    Cycle life

    >6000 cycles

    IP Rating

    IP21(IP65 optional)

    Discharge operating temperature

    -20℃-60℃

    Charging operating temperature

    0℃-45℃

    Maximum parallel

    15PCS

    Communication

    RS232/CAN/RS485 (WIFI/BT optional)

    Display

    LCD color display screen

    Warranty

    5 Years

    Certificate

    UN38.3/MSDS/CE/ROHS/FCC

    NW. (kg)

    45

    110

    130

    50

    115

    135

    GW.(kg)

    55

    125

    145

    60

    130

    150

    Product size (mm)

    545*460*200

    530*790*200

    530*845*200

    545*460*200

    530*790*200

    530*845*200

    Package size(mm)

    625*540*300

    870*610*410

    930*610*410

    625*540*300

    870*610*410

    930*610*410
