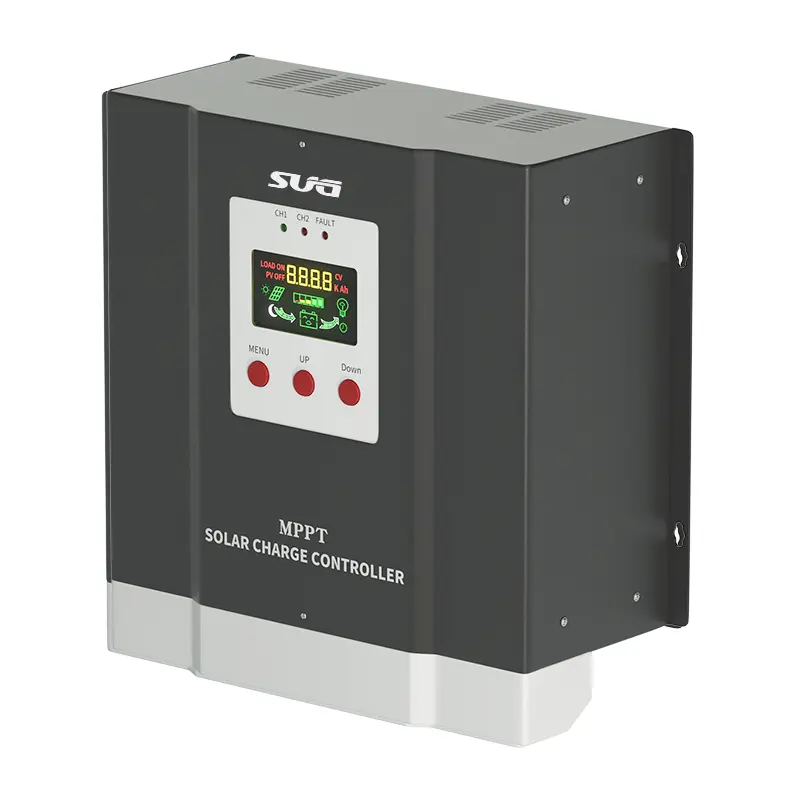

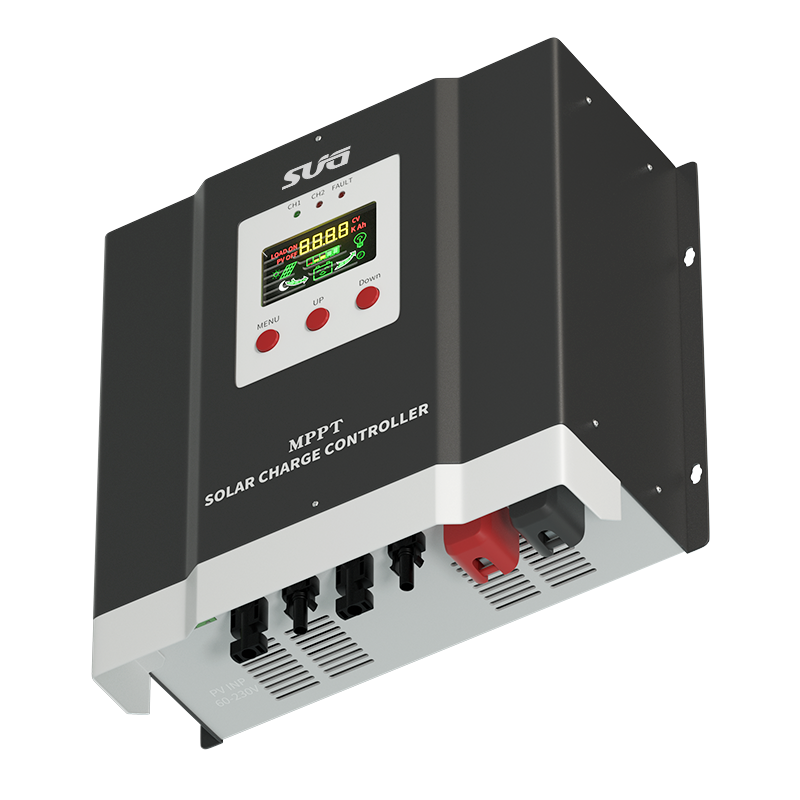

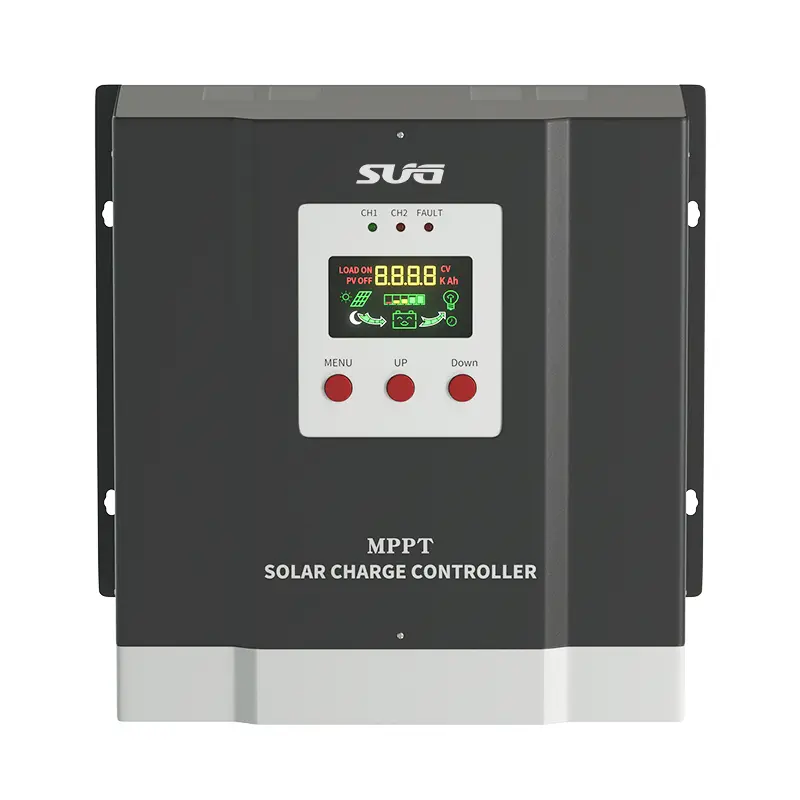

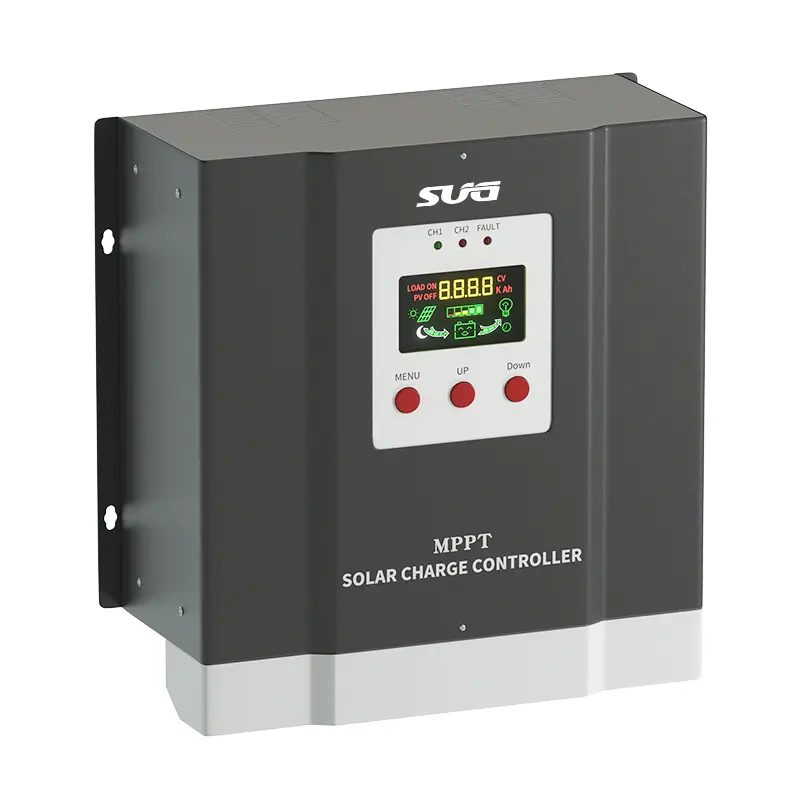

SSM-100A-MPPT Solar Charge Controller
Product Introduction
The SSM controller is suitable for automatic control of charging and discharging processes in solar off grid systems (independent systems). The charging mode of the controller is divided into MPPT and DC-DC, and the discharge process of the battery is optimized to extend the battery's life and improve system performance. Its comprehensive electronic protection function can prevent users from damaging the controller due to installation errors and system failures.
Product features
1. Automatic voltage recognition
2. Lightning protection
3. Adopting large screen LCD display
4. Over charge, overdis charge, over load, short circuit, and battery anti reverse protection
5. Adopting MPPT tracking mode to effectively improve charging efficiency
Product Connection Diagram
Product Parameters
| Model | SSM-100A |
| Maximum open circuit voltage of the battery board | <230V |
| MPPT voltage range | 80V-180V(12V/24V/36V)；100V-230V（48V） |
| Maximum input current | 100A |
| Maximum output current | 40A |
| Maximum input power of solar energy is 12V | 1200W |
| Maximum input power of solar energy is 24V | 2400W |
| Maximum input power of solar energy is 36V | 3600W |
| Maximum input power of solar energy is 48V | 4800W |
| Adjustable battery type | Supports lead-acid, colloid, open end, and lithium batteries (with self set voltage) |
| Charging mode | MPPT |
| Maximum charging efficiency | MPPT mode: 96% |
| Product size / unit (mm) | 310*327*135 |
| NW./unit (kg) | 6.5 |
| Working temperature | -25℃~+60℃ |
| Remote monitoring function | Rs485 optional |
