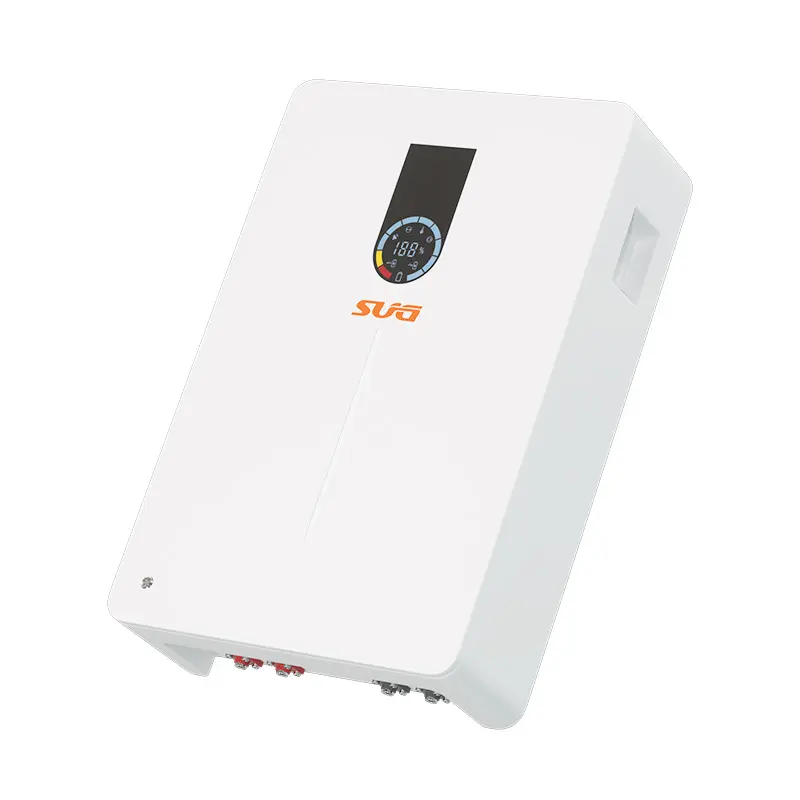

SPWN-Wall Mounted Lifepo4 Energy Storage Battery 51.2V 100Ah 5.12kWh

48V/51.2V 100Ah/200Ah/300Ah

• BMS protection

• Wall hanging design

• Home energy storage

• Intelligent communication

product details

Product Introduction

The SPW-A Power Wall lithium energy storage unit employs advanced cycle lithium iron phosphate cells, which are easier and more visually appealing to set up. The superior BMS protection and management battery system offers a broader application range and extended lifespan compared to conventional batteries. With SUG’s unique color display design, you can swiftly and easily monitor the battery’s operational status.

Product features

1. Grade A LiFePO4 cell

2. Parallel support for 15PCS

3. Compatible with multiple inverter brands

4. 6000 cycles @ DOD80%

5. Bluetooth/WIFI optional

6. BMS 100A/150A/200A optional

7. LCD color display screen

Application Area

※ Energy storage system, control system, alarm system, power system, database

※ Emergency lighting system, emergency power supply, UPS

※ Telecommunications, communication, and fire protection

Product Parameters

Model	SPW-A-48100	SPW-A-48200	SPW-A-48300	SPW-A-51.2100	SPW-A-51.2200	SPW-A-51.2300
Standard voltage	48V	48V	48V	51.2V	51.2V	51.2V
Standard capacity	100Ah	200Ah	300Ah	100Ah	200Ah	300Ah
Rated capacity	4.8kWh	9.6kWh	14.4kWh	5.12kWh	10.24kWh	15.36kWh
Working voltage	40.5-54V			43.2-57.6V
Standard charging current	50A		150A	50A		150A
Standard discharging current	100A		200A	100A		200A
Suggested DOD	0.8
Cycle life	>6000 cycles
IP Rating	IP21(IP65 optional)
Discharge operating temperature	-20℃-60℃
Charging operating temperature	0℃-45℃
Maximum parallel	15PCS
Communication	RS232/CAN/RS485 (WIFI/BT optional)
Display	LCD color display screen
Warranty	5 Years
Certificate	UN38.3/MSDS/CE/ROHS/FCC
NW. (kg)	45	110	130	50	115	135
GW.(kg)	55	125	145	60	130	150
Product size (mm)	545460200	530790200	530845200	545460200	530790200	530845200
Package size（mm）	625540300	870610410	930610410	625540300	870610410	930610410
