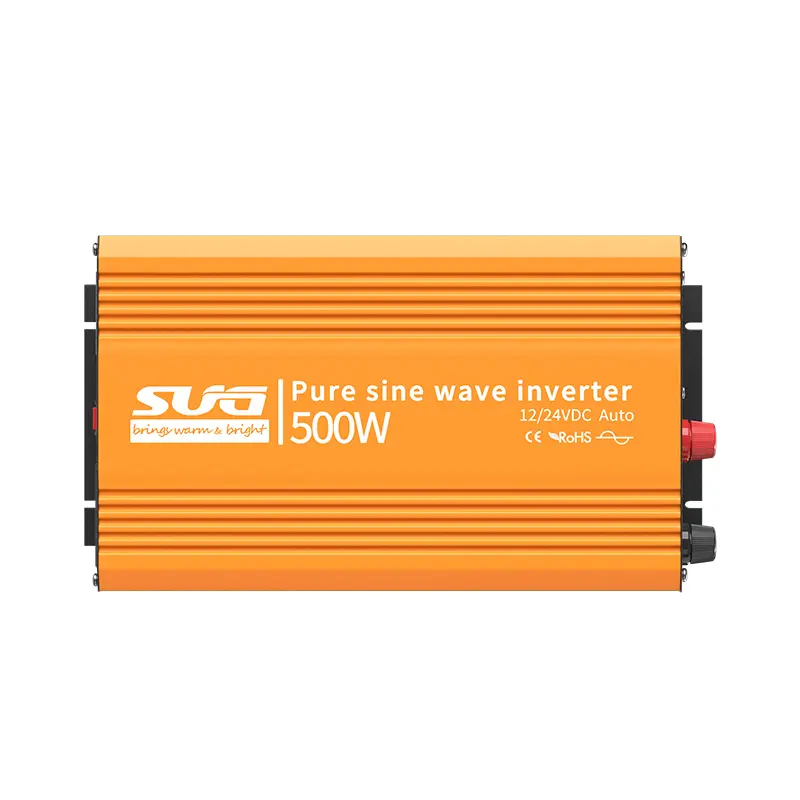

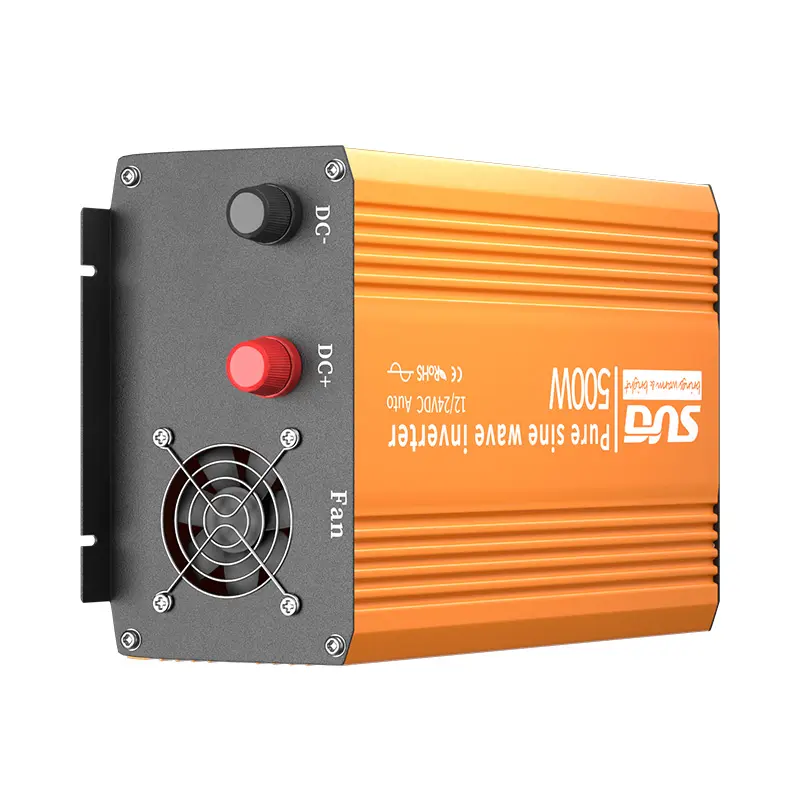

SGPI 500W 12/24VDC Double Voltage Auto Recognize Inverter
Product Introduction
The SGPI series dual-voltage auto-detection inverter can automatically recognize the input voltage and consistently deliver 220V or 110VAC when the input voltage ranges from 12VDC to 24VDC. SGPI possesses identical functions and performance as the SGPE series. It features a smart color display design, visualizes operational data, and produces sine wave quality superior to grid electricity; Simultaneously, the layout of the transmission and output cables is entirely isolated, guaranteeing the safety of system operations.
Product features

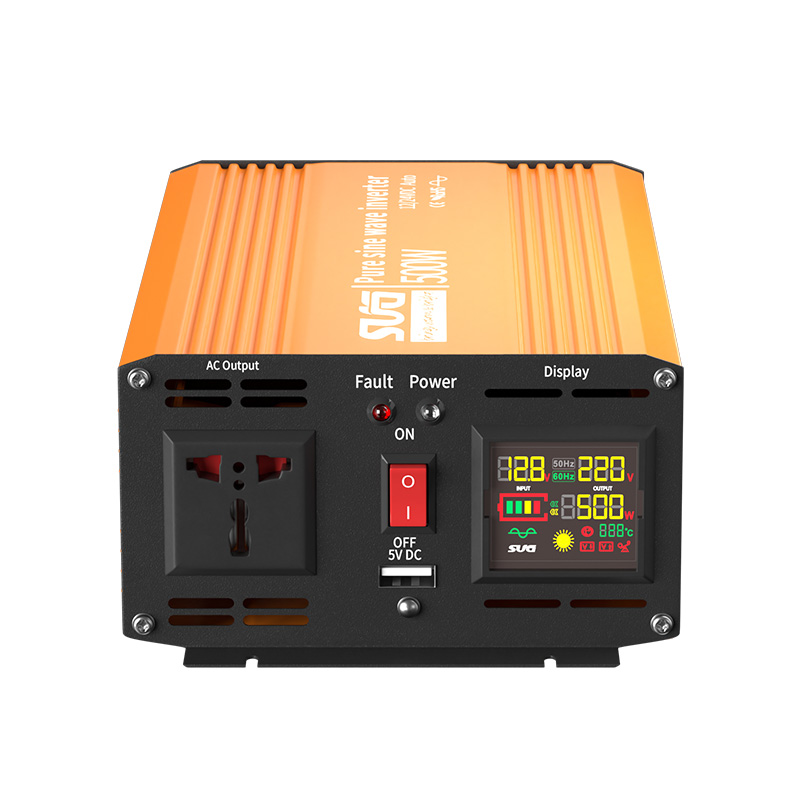

Intelligent color display remote control panel display
Puresine wave inverter
Customizable Bluetooth and wire less remote control functions
Customizable for various types of sockets
Input 12/ 2 4 Vdc for auto matic recognition
Stable voltage output with al most no voltage drop at fullload
Customizable RS 485 communication
Product Parameters

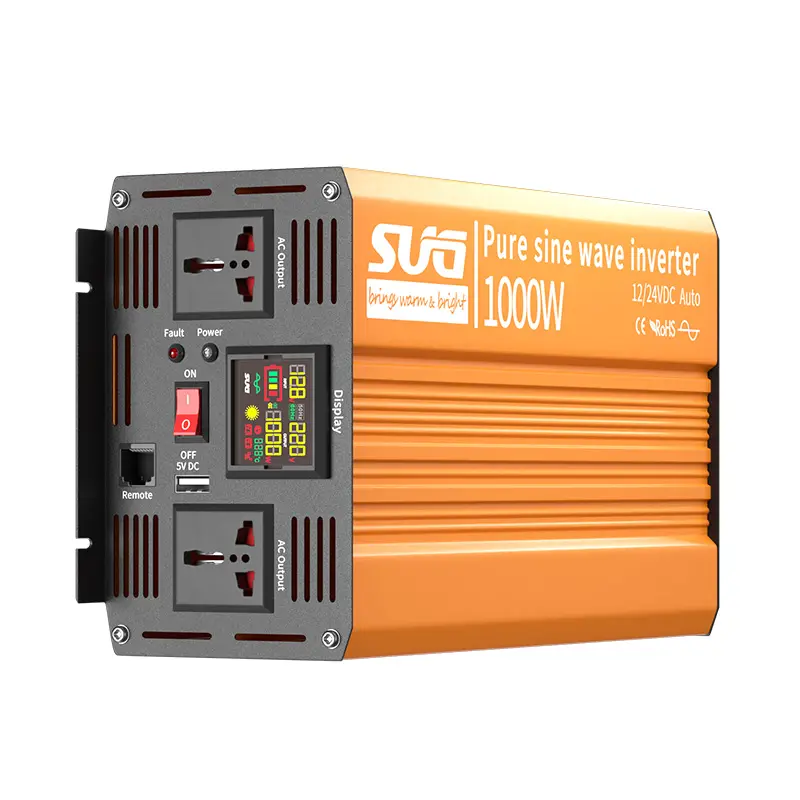

| Model | SGPI500 | SGPI1000 |
| Rated power | 500W | 1000W |
| Peak power | 1000W | 2000W |
| Input voltage | 12/24VDC | |
| Output voltage | 110/220VAC士5% | |
| USB port | 5V2A | |
| Frequency | 50Hz ± 3 or60Hz ± 3 | |
| Output waveform | Pure sine wave | |
| Soft start | yes | |
| Total harmonic distortion THD | THD<3% (linear load) | |
| Efficiency | Maximum 94% | |
| DC input range | 12V(10V-15.5V)；24V(20V-31V) | |
| Input undervoltage alarm | 12V(10.5V±0.5V)；24V(21V±0.5V) | |
| Input undervoltage protection | 12V(10V±0.5V)；24V(20V±0.5V) | |
| Input undervoltage recovery | 12V(13V±0.5V)；24V(24V±0.5V) | |
| Input Overvoltage Protection | 12V(15.5±0.5V)；24V(31V±0.5V) | |
| Input overvoltage recovery | 12V(14.8V±0.5V)；24V(30V±0.5V) | |
| Refrigeration method | Intelligent fan | |
| Protection function | Undervoltage protection, overvoltage protection, overload protection, over temperature protection, | |
| short circuit protection, reverse connection protection (fuse) | ||
| Working temperature | -10 ° C-+50 ° C | |
| Product size (cm) | 24*15*7 .8 | 31.8*17*10. 5 |
| Package size (cm) | 76*45*28/10PCS | 53.5*47*40.7/6PCS |
| NW./PCS (kg) | 1.78 | 3.02 |
| GW. /Ctn (kg) | 22.8 | 21.8 |
| Packaging method | Carton | |
| Warranty | 1Year | |
