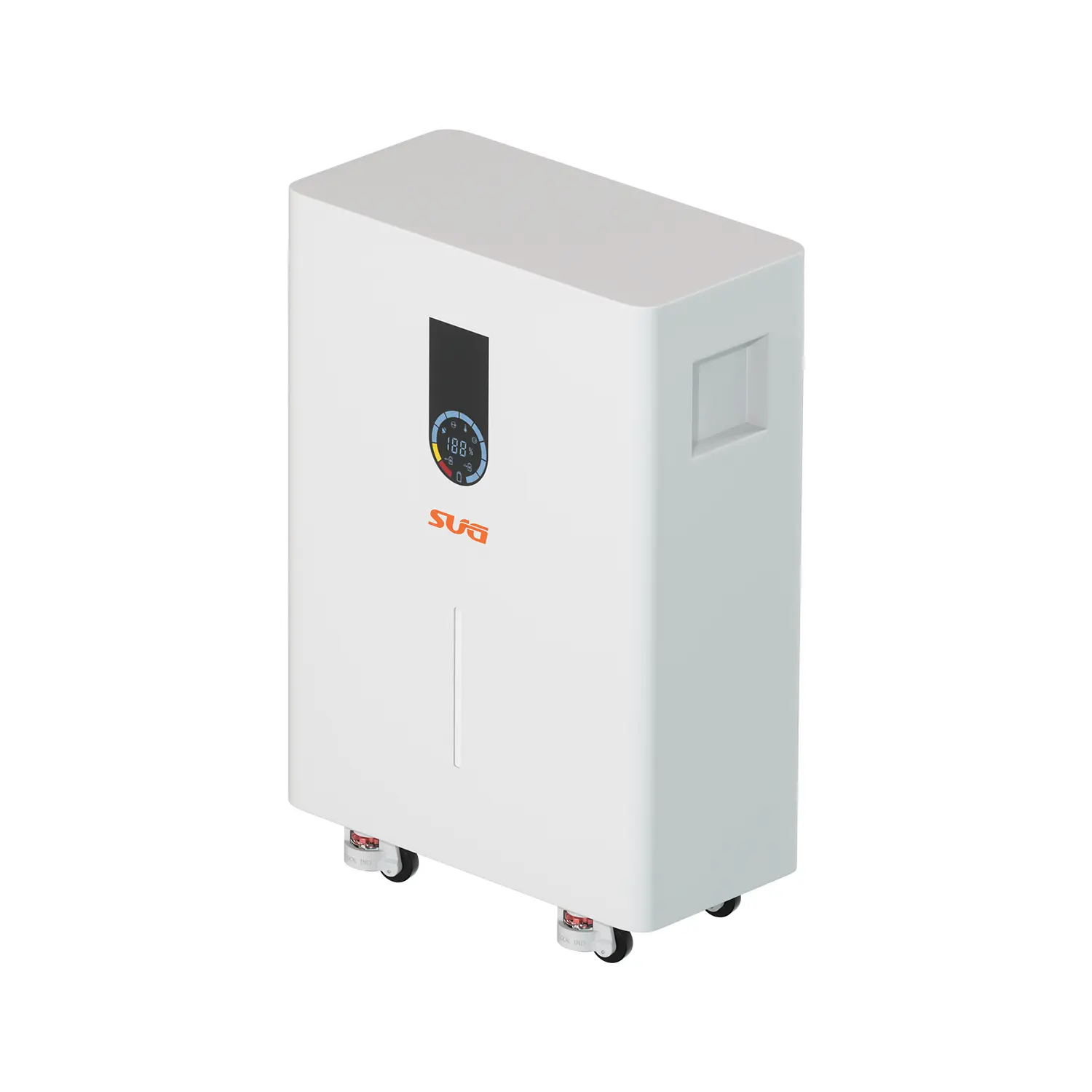

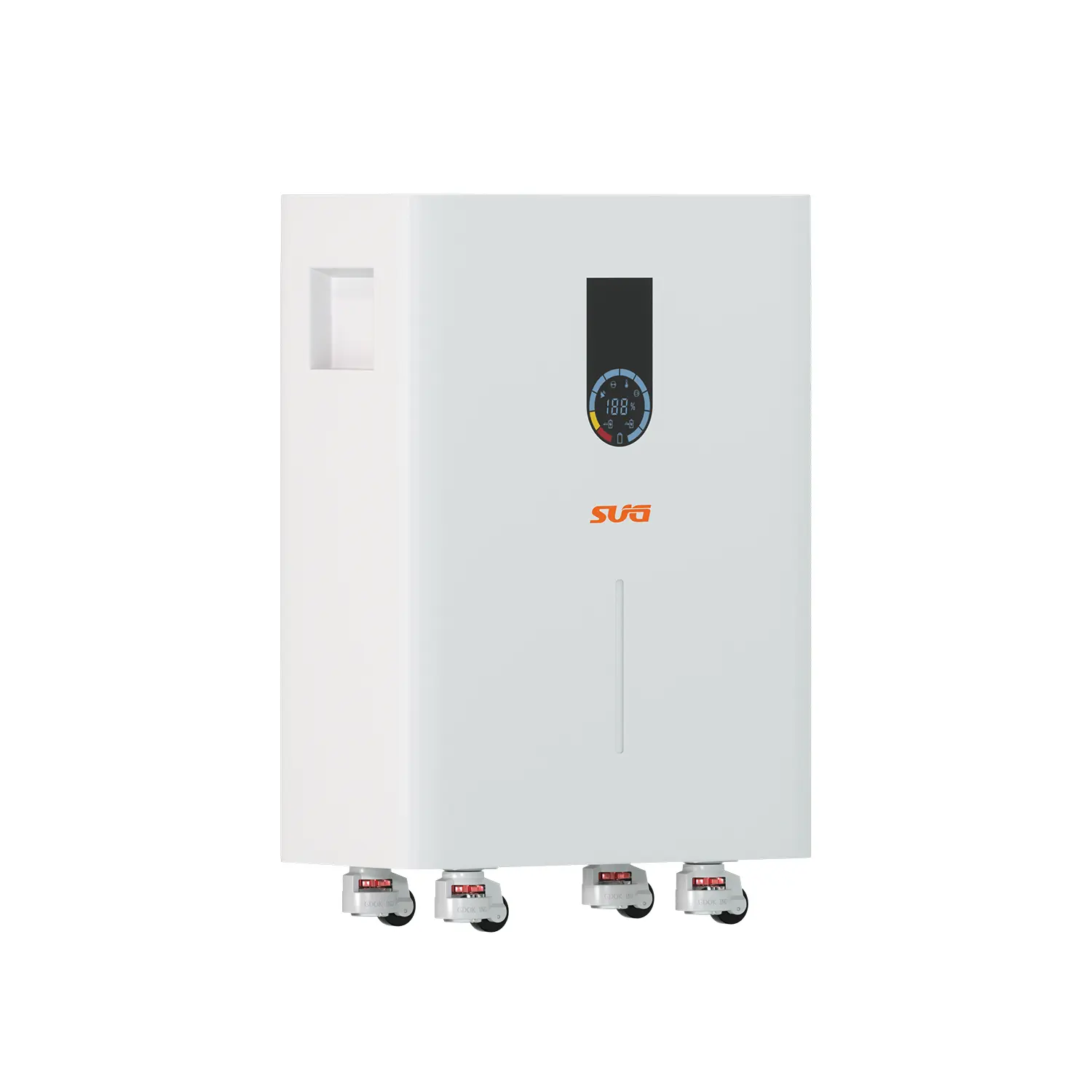

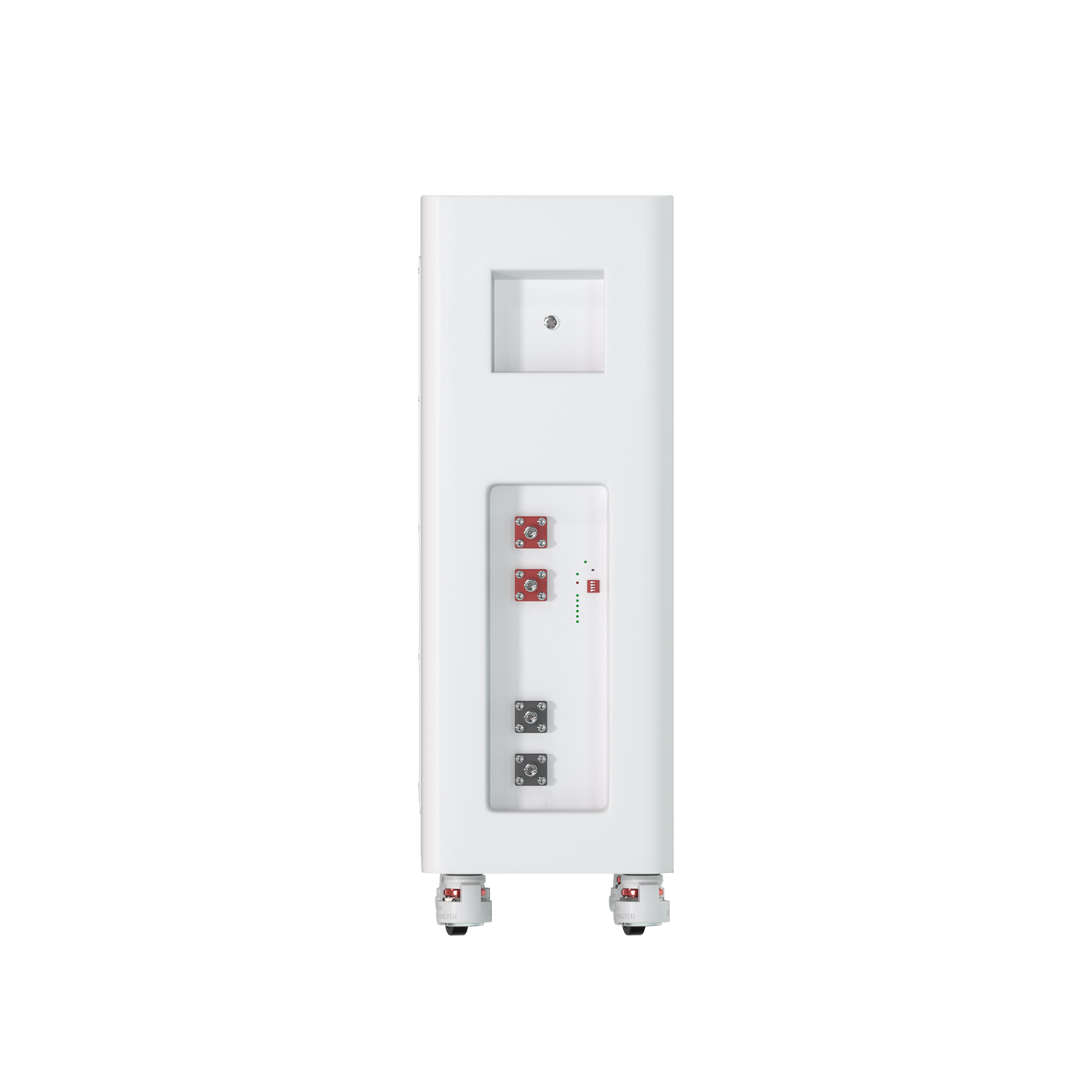

SPV-51.2V/300Ah Vertical LFP Energy Storage Battery
Product Introduction
The SPV vertical energy storage lithium battery, a long-lived lithium iron phosphate battery, vertical energy storage battery can move freely and conveniently, high-performance BMS protection and management battery system, with a wider range of use and longer lifespan than traditional batteries.
Product features
1. Grade A LiFePO4 cell
2. Parallel support for 15PCS
3. Compatible with multiple inverter brands
4. 6000 cycles @ DOD80%
5. Bluetooth/WIFI optional
6. LCD color screen/LCD touch screen (optional)
7. 150A/200A optional
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Telecommunications, communication, and fire protection
※ Emergency lighting system, emergency power supply, UPS
Product Parameters
| Model | SPV-51.2300 |
| Standard voltage | 51.2V |
| Standard capacity | 300Ah |
| Rated capacity | 15.36kWh |
| Working voltage | 43.2-57.6V |
| Standard charging current | 200A |
| Standard discharging current | 200A |
| Suggested DOD | 80% |
| Cycle life | >6000 cycles |
| IP Rating | IP21（IP65 optional） |
| Discharge operating temperature | -20℃-50℃ |
| Charging operating temperature | 0℃-45℃ |
| Maximum parallel | 15PCS |
| Communication | RS232/CAN/RS485 (WIFI/BT optional) |
| Display | LCD color screen/LCD touch screen (optional) |
| Warranty | 5 Years |
| Certificate | UN38.3/MSDS/CE/ROHS/FCC |
| NW.(kg) | 123 |
| GW.(kg) | 142.9 |
| Product size (mm) | 550*270*860 |
| Package size（mm） | 630*940*470 |
