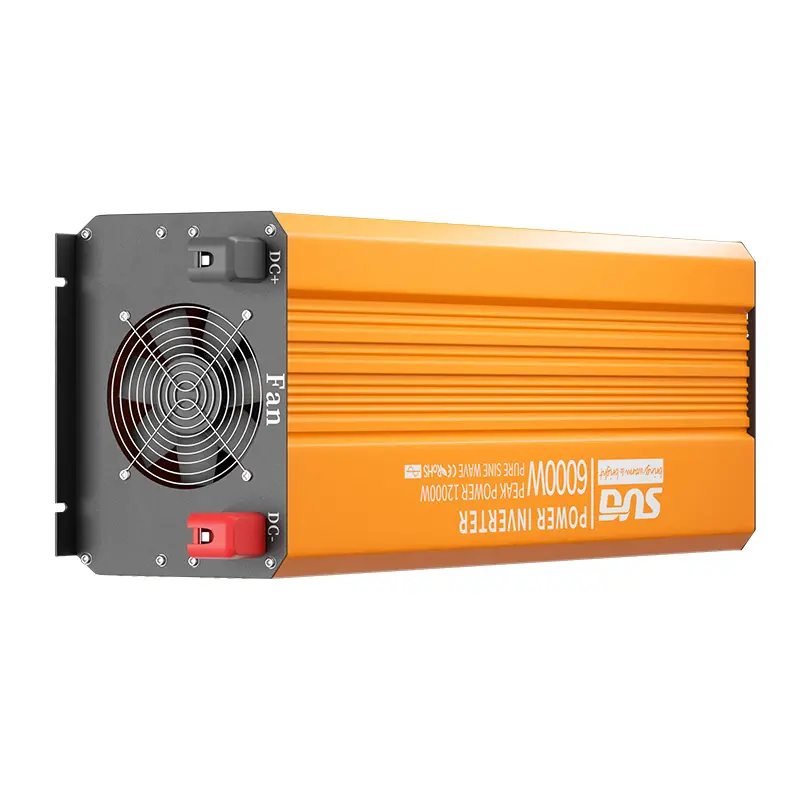

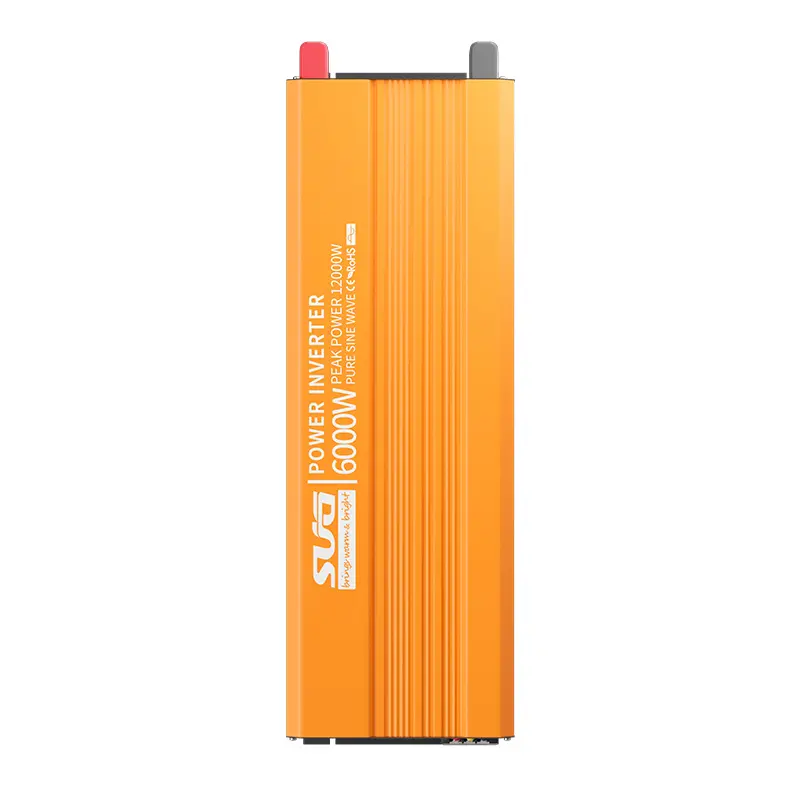

SGPE-6000W Series Pure Sine Wave Inverter With E Display

product details

Product Introduction

The SGPE series high-frequency pure sine wave inverter adopts an intelligent color screen design to visualize operating information. It uses imported chips and self-developed software to provide pure sine wave quality that is superior to commercial power. It can power most electric tools and inductive loads; at the same time, the input and output circuits are completely isolated to ensure safe system operation. The recently enhanced digital remote control and personalized Bluetooth APP are very suitable for outdoor RV applications.

Product features

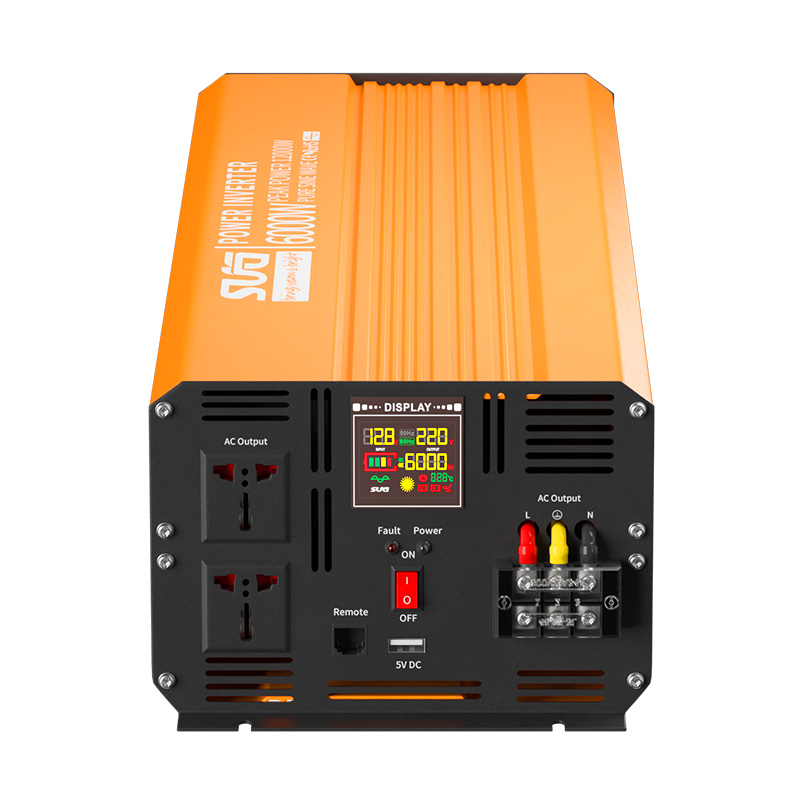

Intelligent display remote control panel display

Puresine wave inverter

Customizable Bluetooth and wire less remote control functions

Customizable RS 485 communication

Customized input voltage: 36/60/72/96/110VDC

Customizable for various types of sockets

Stable voltage output with almost no voltaged ropat full load

Product Parameters

Model	SGPE-3000	SGPE-3500	SGPE-4000	SGPE-5000	SGPE-6000	SGPE-8000
Rated power	3000W	3500W	4000W	5000W	6000W	8000W
Peak power	6000W	7000W	8000W	10000W	12000W	16000W
Input voltage	12/24/48VDC (customizable)
Output voltage	110/220VAC士5%
USB output	5V2A
Type-C output	Optional(PD30W/ PD60W )
Frequency	50Hz ± 3 or 60Hz ± 3
Output waveform	Pure sine wave
Soft start	Yes
Total harmonic distortion THD	THD<3% (linear load)
Efficiency	Maximum 94%
DC input range	12V(10V-15.5V)；24V(20V-31V)；48V(40V-61V)
Input under voltage	12V(10.5V±0.5V)；24V(21V±0.5V)；48V(42V±1V)
alarm	12V(10.5V±0.5V)；24V(21V±0.5V)；48V(42V±1V)
Input under voltage protection	12V(10V±0.5V)；24V(20V±0.5V)；48V(40V±1V)
Input under voltage recovery	12V(12V±0.5V)；24V(24V±0.5V)；48V(48V±1V)
Input over voltage protection	12V(15.5V±0.5V)；24V(31V±0.5V)； 48V(60V±1V)
Input over voltage recovery	12V(15V±0.5V)；24V(20V±0.5V)；48V(59V±1V)

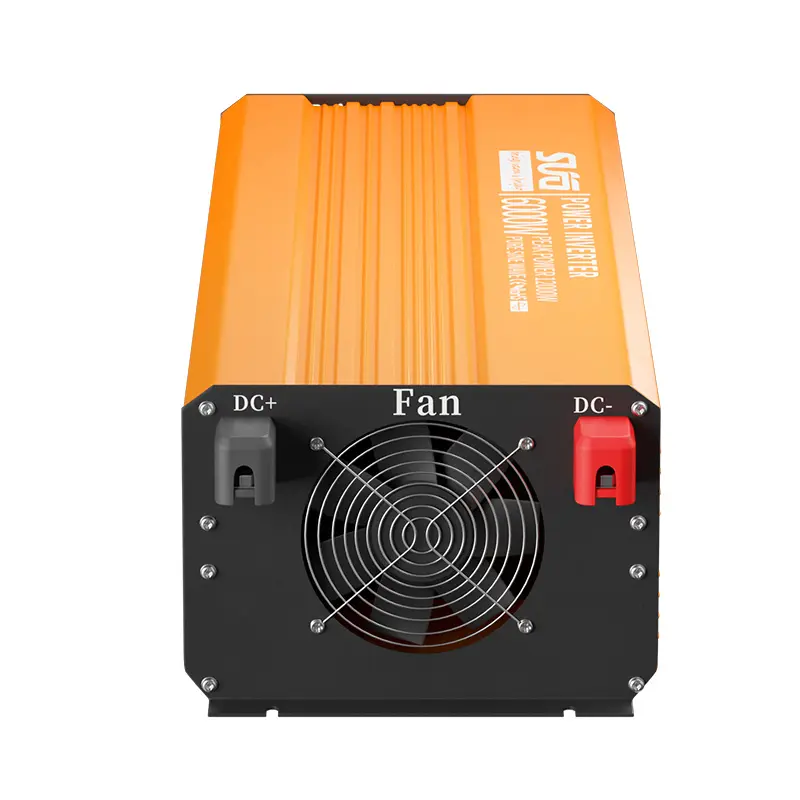

Refrigeration method	Intelligent fan
Protection function	Under voltage protection, over voltage protection, overload protection, over temperature protection, short circuit protection, reverse connection protection (fuse)
Working temperature	-10 ° C-+50 ° C
Product size (cm)	50. 519.98 .4	4819.98 .4	512015	512015	612015	612015
Package size (cm)	602731.5/ 2PCS	56.530.824/ 1PCS	6532.525/ 1PCS	6532.525/ 1PCS	743225/ 1PCS	743225/ 1PCS
NW./PCS (kg)	6.35	8.92	9.04	10. 12	12.25	13. 14
GW. /Ctn (kg)	15.45	10.7	10.84	13.25	14	14.96
Packaging method	Carton	Honeycomb box
Warranty	2 Years
Model	SGPE-3000	SGPE-3500	SGPE-4000	SGPE-5000	SGPE-6000	SGPE-8000
