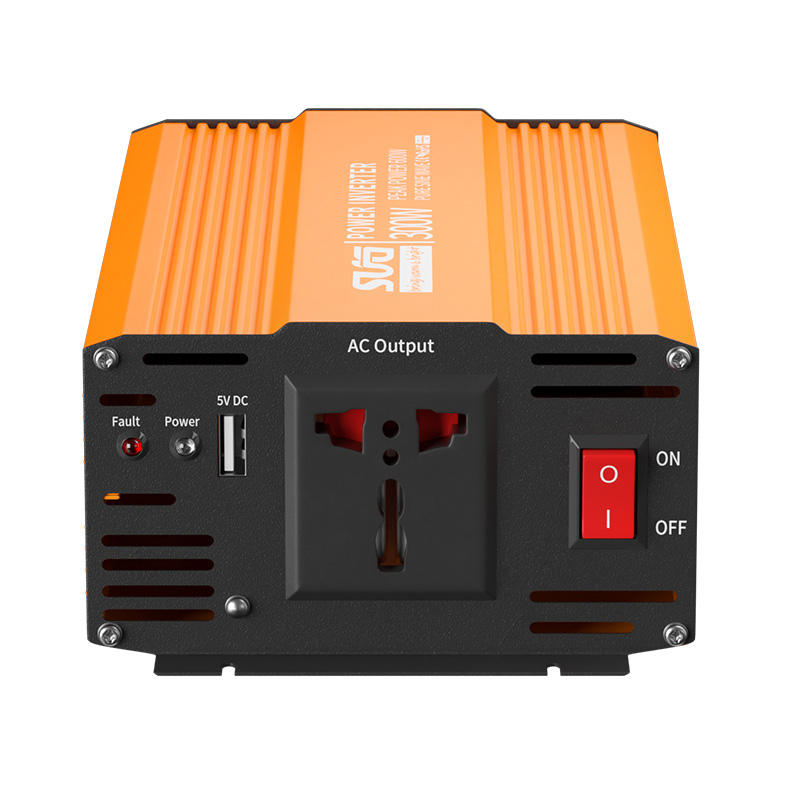

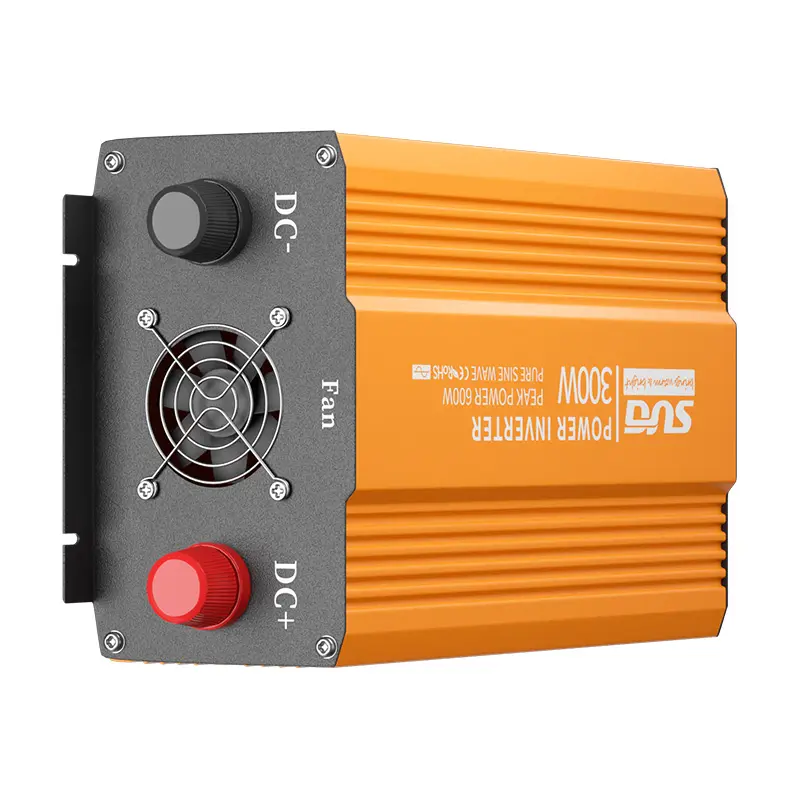

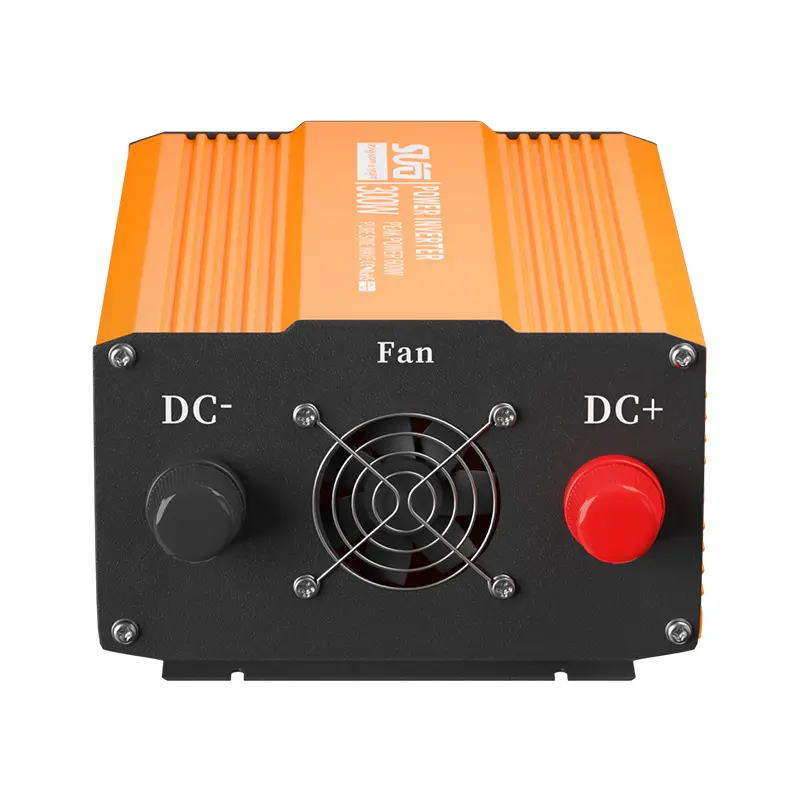

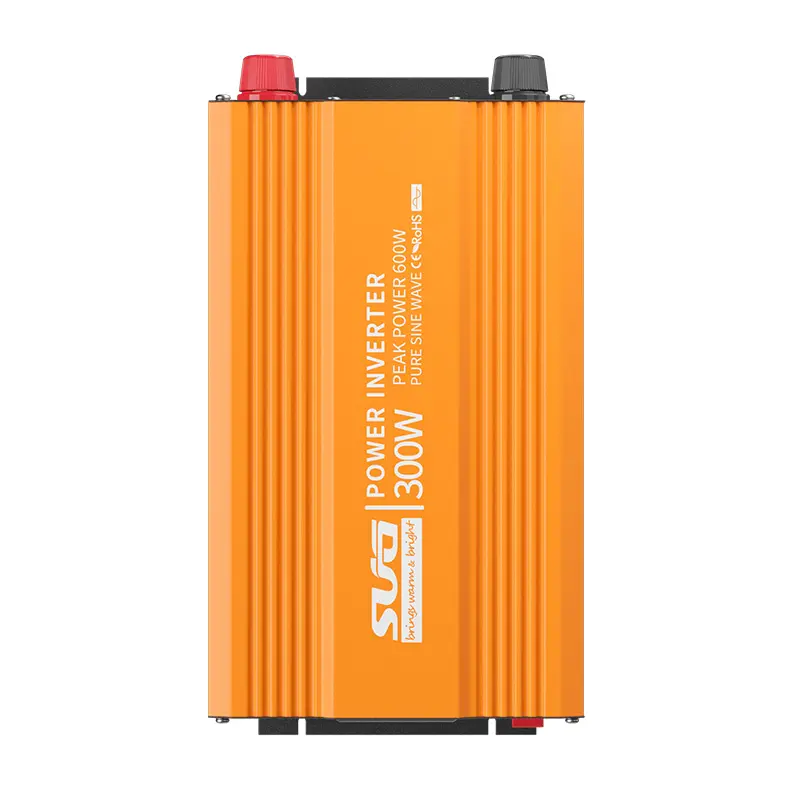

SGPE-300W Series Pure Sine Wave Inverter With E Display
Product Introduction
The SGPE series high-frequency pure sine wave inverter adopts an intelligent color screen design to display operating information. It uses imported chips and self-made software to generate pure sine wave power that is superior to commercial power. It is suitable for powering various power tools and equipment with coils; in addition, the input and output circuits are completely separated to ensure system safety. The recently enhanced digital remote control and personalized Bluetooth app are perfect for outdoor RV use cases.
Product features
Intelligent display remote control panel display
Puresine wave inverter
Customizable Bluetooth and wire less remote control functions
Customizable RS 485 communication
Customized input voltage: 36/60/72/96/110VDC
Customizable for various types of sockets
Stable voltage output with almost no voltaged ropat full load
Product Parameters
| Model | SGPE-300 |
| Rated power | 300W |
| Peak power | 600W |
| Input voltage | 12/24/48VDC (customizable) |
| Output voltage | 110/220VAC±5% |
| USB output | 5V2A |
| Type-C output | Optional(PD30W/PD60W ) |
| Frequency | 50Hz ± 3 or 60Hz ± 3 |
| Output waveform | Pure sine wave |
| Soft start | Yes |
| Total harmonic distortion THD | THD<3% (linear load) |
| Efficiency | Maximum 94% |
| DC input range | 12V(10V-15.5V)；24V(20V-31V)；48V(40V-61V) |
| Input undervoltage alarm | 12V(10.5V±0.5V)；24V(21V±0.5V)；48V(42V±1V) |
| Input undervoltage protection | 12V(10V±0.5V)；24V(20V±0.5V)；48V(40V±1V) |
| Input undervoltage recovery | 12V(12V±0.5V)；24V(24V±0.5V)；48V(48V±1V) |
| Input overvoltage protection | 12V(15.5V±0.5V)；24V(31V±0.5V)；48V(60V±1V) |
| Input overvoltage recovery | 12V(15V±0.5V)；24V(20V±0.5V)；48V(59V±1V) |
| Refrigeration method | Intelligent fan |
| Protection function | Undervoltage protection, overvoltage protection, overload protection, over temperature protection, short circuit protection, reverse connection protection (fuse) |
| Working temperature | -10°C-+50°C |
| Product size (cm) | 18.8*10.2*6 |
| Package size (cm) | 54.5*49*32.5/18PCS |
| NW./PCS (kg) | 0.9 |
| GW. /Ctn (kg) | 23 |
| Packaging method | Carton |
| Warranty | 2 Years |
