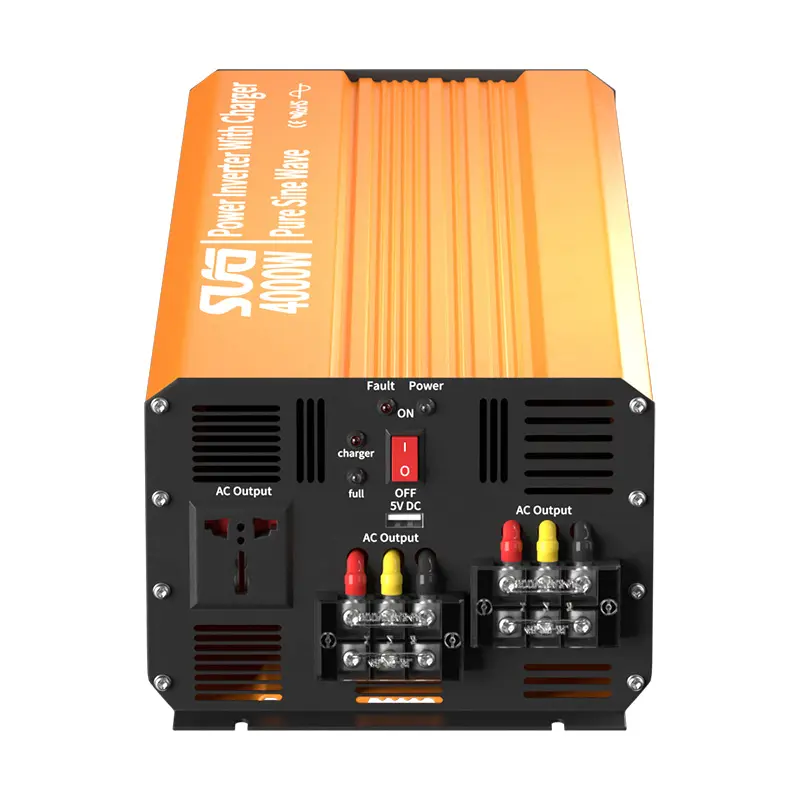

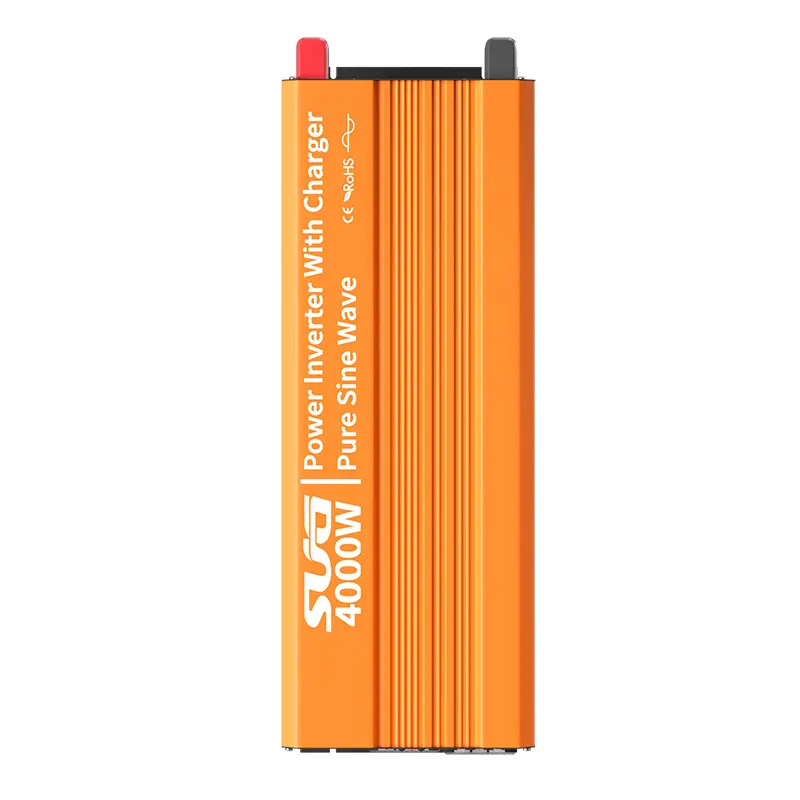

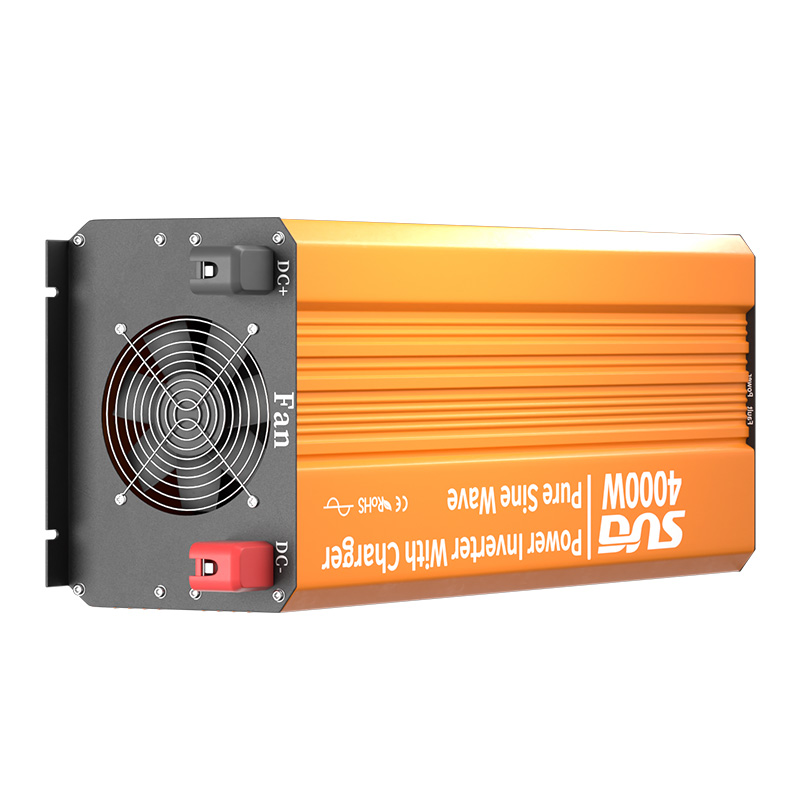

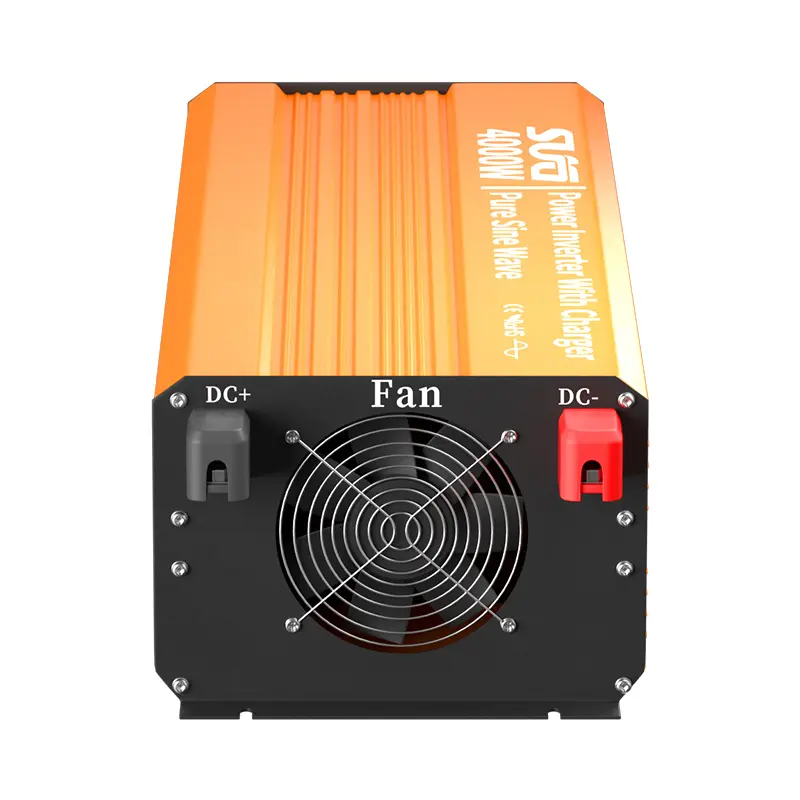

SGPC-4000W Series Pure Sine Wave Inverter With Charger
Product Introduction
The SGPC series charging pure sine wave inverter has corresponding mains charging and mains functions, which can give priority to powering the load and charging the battery. When the power grid fails, it automatically switches to inverter power supply to ensure uninterrupted power supply to the load. The quality of the output sine waveform is better than that of the grid power supply; at the same time, the configuration of the input and output circuits is completely isolated, ensuring the safety of system operation.
Product features
Priority of mains power supply to load
Equipped with main scharging and UPS functions
LCD remote control panel optional
Customizable for various types of sockets
Puresine wave inverter
Can support lithium battery activation
Product Parameters
| Model | SGPC-500 | SGPC-1000 | SGPC-1500 | SGPC-2000 | SGPC-3000 | SGPC-4000 | SGPC-5000 |
| Rated power | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W |
| Peak power | 1000W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W |
| Input voltage | 12/24/48VDC | ||||||
| Output voltage | 110/220VAC士5% | ||||||
| USB port | 5V2A | ||||||
| Frequency | 50Hz ± 3 or 60Hz ± 3 | ||||||
| Output waveform | Pure sine wave | ||||||
| Soft start | yes | ||||||
| Charging current | 12V/ 10A or 24V/ 5A | 12/20A or 24V/ 10A | 24V/20A or 48V/ 10A | ||||
| Power supply priority | Priority for AC | ||||||
| Switching time | ＜10 ms | ||||||
| DC input range | 12V(10V-15.5V)；24V(20V-31V)；48V(40V-61V) | ||||||
| Input undervoltage alarm | 12V(10.5V±0.5V)；24V(21V±0.5V)；48V(42V±1V) | ||||||
| Input undervoltage protection | 12V(10V±0.5V)；24V(20V±0.5V)；48V(40V±1V) | ||||||
| Input undervoltage recovery | 12V(12V±0.5V)；24V(24V±0.5V)；48V(48V±1V) | ||||||
| Input Overvoltage Protection | 12V(15.5V±0.5V)；24V(31V±0.5V)；48V(60V±1V) | ||||||
| Input overvoltage recovery | 12V(15V±0.5V)；24V(20V±0.5V)；48V(59V±1V) | ||||||
| Refrigeration method | Intelligent fan | ||||||
| Protection function | Undervoltage protection, overvoltage protection, overload protection, over temperature protection, | ||||||
| short circuit protection, reverse connection protection (fuse) | |||||||
| Working | -10 ° C-+50 ° C | ||||||
| temperature | |||||||
| Product size (cm) | 29.8*17*10.2 | 37. 5*17*10.2 | 37. 5*17*10.2 | 43*17*10.2 | 51*19.8*14 . 5 | 61*19.8*14 . 5 | 61*19.8*145 |
| Package size (cm) | 53. 5*47*40*7/ 6pcs | 47.5*47*36.5/ 4PCS | 47.5*47*36.5/ 4PCS | 53*47*36.5/ 4PCS | 65*32.5*25/ 1PCS | 74*32*25/ 1PCS | 74*32*25/ 1PCS |
| NW./PCS (kg) | 2.7 | 3. 5 | 3.7 | 5.25 | 8.9 | 1 1. 14 | 13. 56 |
| GW. /Ctn (kg) | 22 | 18 | 20 | 24.2 | 10.82 | 13.48 | 16. 18 |
| Packaging method | Carton | Honeycomb box | |||||
| Warranty | 1Year | ||||||
