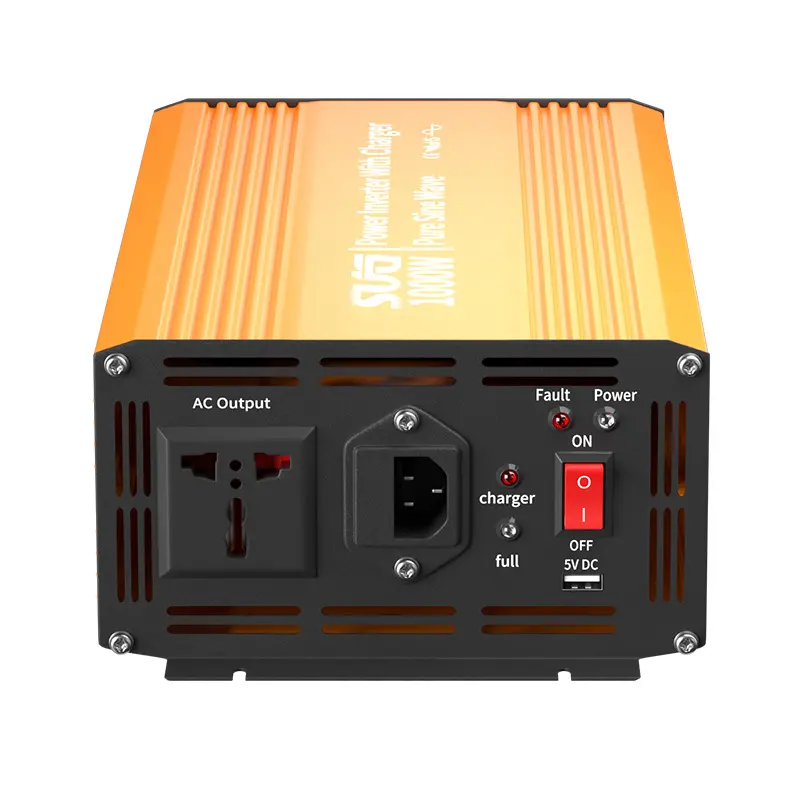

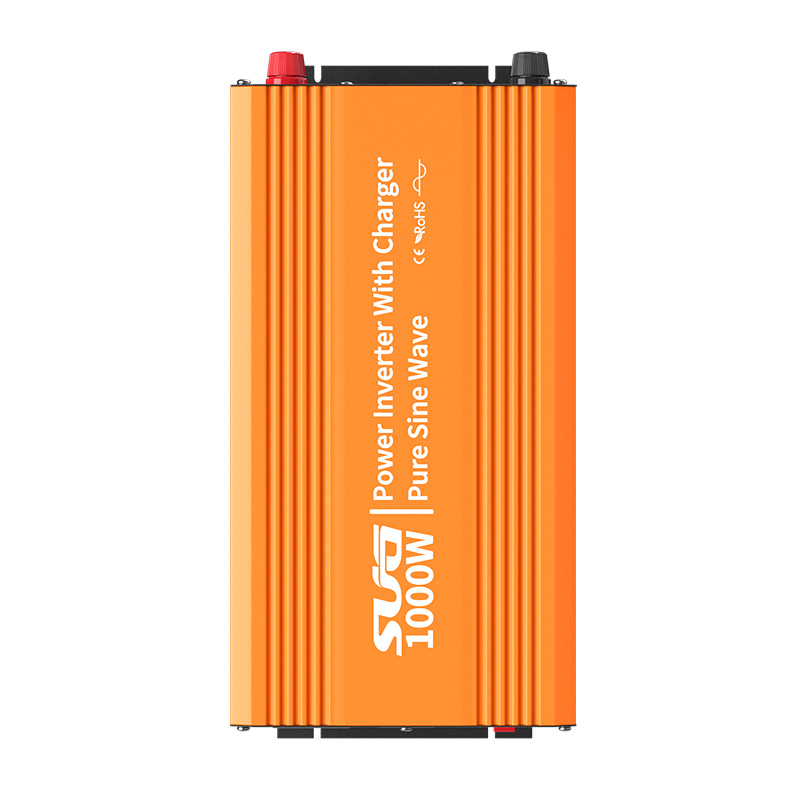

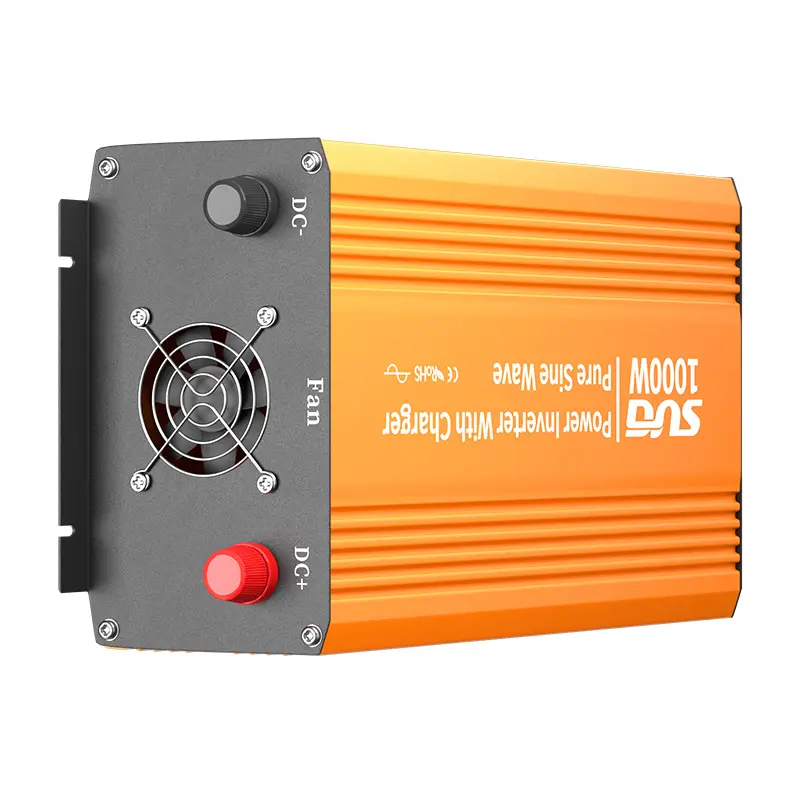

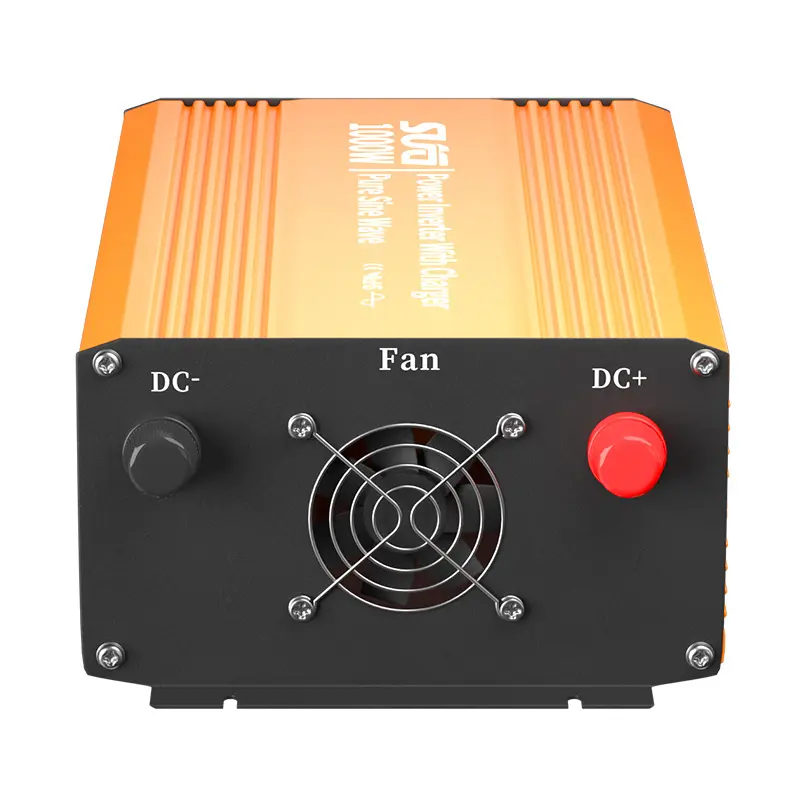

SGPC-1000W Series Pure Sine Wave Inverter With Charger
Product Introduction
The SGPC Range Pure Sine Wave Inverter with charging possesses corresponding features of grid charging and grid electricity, which can give priority to the electricity supply to the load and charge the battery. In case of grid power failure, it will switch to inverter power supply automatically, guaranteeing uninterrupted electricity supply to the load. The output sine waveform quality is superior to that of grid power; Simultaneously, the configuration of input and output circuits is entirely isolated, ensuring the safety of system operation.
Product features
Priority of mains power supply to load
Equipped with main scharging and UPS functions
LCD remote control panel optional
Customizable for various types of sockets
Puresine wave inverter
Can support lithium battery activation
Product Parameters
| Model | SGPC-500 | SGPC-1000 | SGPC-1500 | SGPC-2000 | SGPC-3000 | SGPC-4000 | SGPC-5000 |
| Rated power | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W |
| Peak power | 1000W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W |
| Input voltage | 12/24/48VDC | ||||||
| Output voltage | 110/220VAC士5% | ||||||
| USB port | 5V2A | ||||||
| Frequency | 50Hz ± 3 or 60Hz ± 3 | ||||||
| Output waveform | Pure sine wave | ||||||
| Soft start | yes | ||||||
| Charging current | 12V/ 10A or 24V/ 5A | 12/20A or 24V/ 10A | 24V/20A or 48V/ 10A | ||||
| Power supply priority | Priority for AC | ||||||
| Switching time | ＜10 ms | ||||||
| DC input range | 12V(10V-15.5V)；24V(20V-31V)；48V(40V-61V) | ||||||
| Input undervoltage alarm | 12V(10.5V±0.5V)；24V(21V±0.5V)；48V(42V±1V) | ||||||
| Input undervoltage protection | 12V(10V±0.5V)；24V(20V±0.5V)；48V(40V±1V) | ||||||
| Input undervoltage recovery | 12V(12V±0.5V)；24V(24V±0.5V)；48V(48V±1V) | ||||||
| Input Overvoltage Protection | 12V(15.5V±0.5V)；24V(31V±0.5V)；48V(60V±1V) | ||||||
| Input overvoltage recovery | 12V(15V±0.5V)；24V(20V±0.5V)；48V(59V±1V) | ||||||
| Refrigeration method | Intelligent fan | ||||||
| Protection function | Undervoltage protection, overvoltage protection, overload protection, over temperature protection, | ||||||
| short circuit protection, reverse connection protection (fuse) | |||||||
| Working | -10 ° C-+50 ° C | ||||||
| temperature | |||||||
| Product size (cm) | 29.8*17*10.2 | 37. 5*17*10.2 | 37. 5*17*10.2 | 43*17*10.2 | 51*19.8*14 . 5 | 61*19.8*14 . 5 | 61*19.8*145 |
| Package size (cm) | 53. 5*47*40*7/ 6pcs | 47.5*47*36.5/ 4PCS | 47.5*47*36.5/ 4PCS | 53*47*36.5/ 4PCS | 65*32.5*25/ 1PCS | 74*32*25/ 1PCS | 74*32*25/ 1PCS |
| NW./PCS (kg) | 2.7 | 3. 5 | 3.7 | 5.25 | 8.9 | 1 1. 14 | 13. 56 |
| GW. /Ctn (kg) | 22 | 18 | 20 | 24.2 | 10.82 | 13.48 | 16. 18 |
| Packaging method | Carton | Honeycomb box | |||||
| Warranty | 1Year | ||||||
