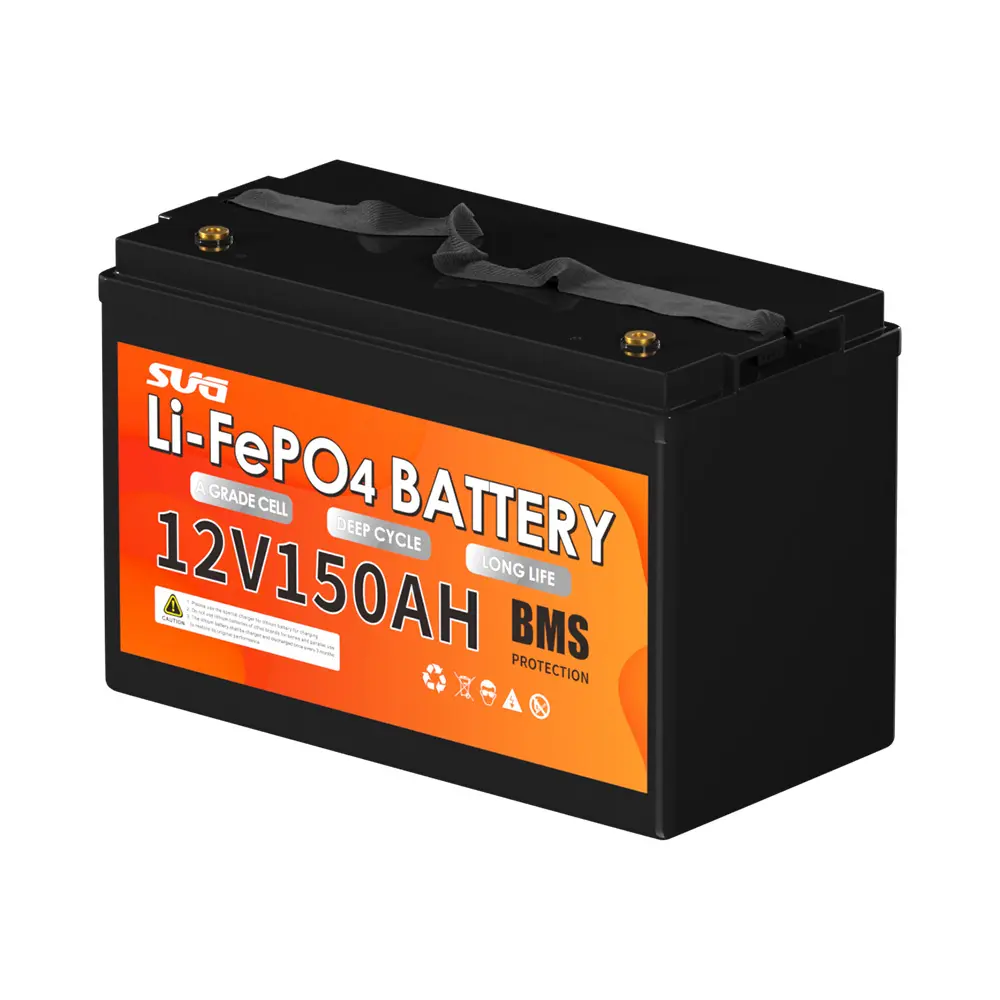

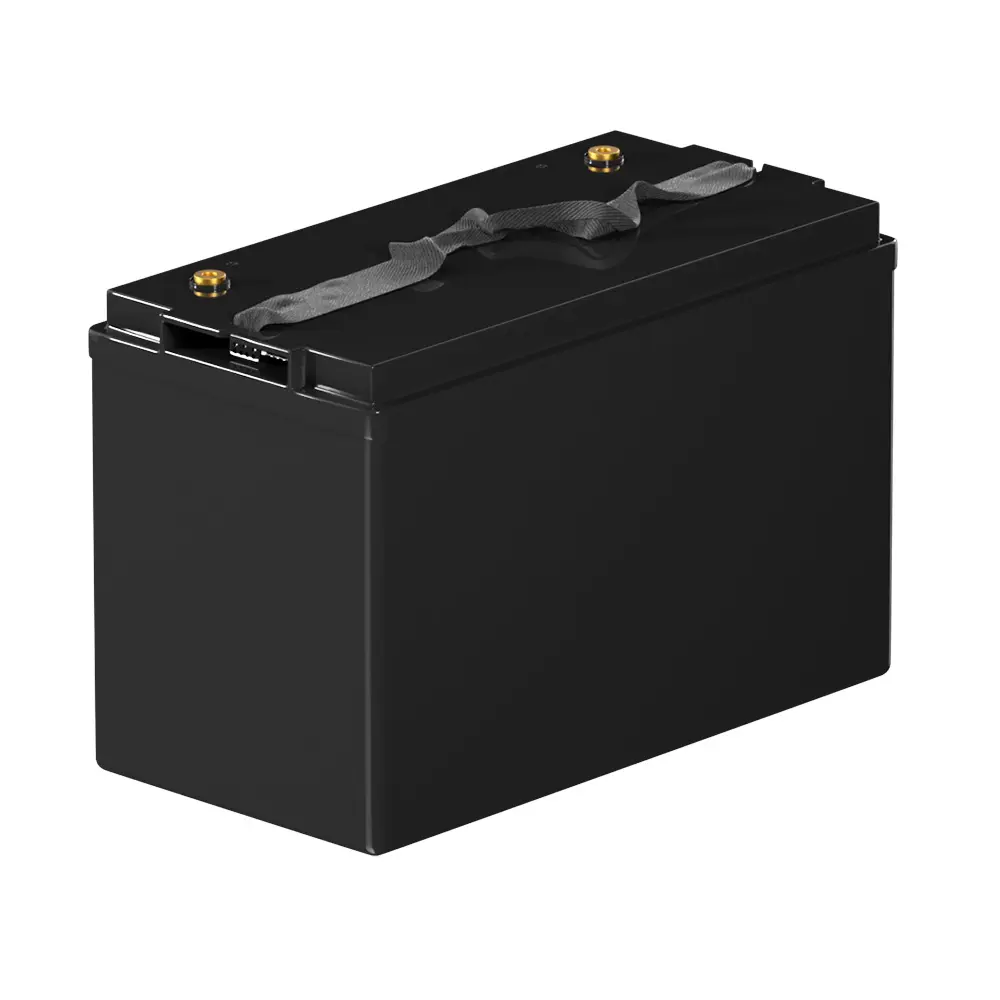

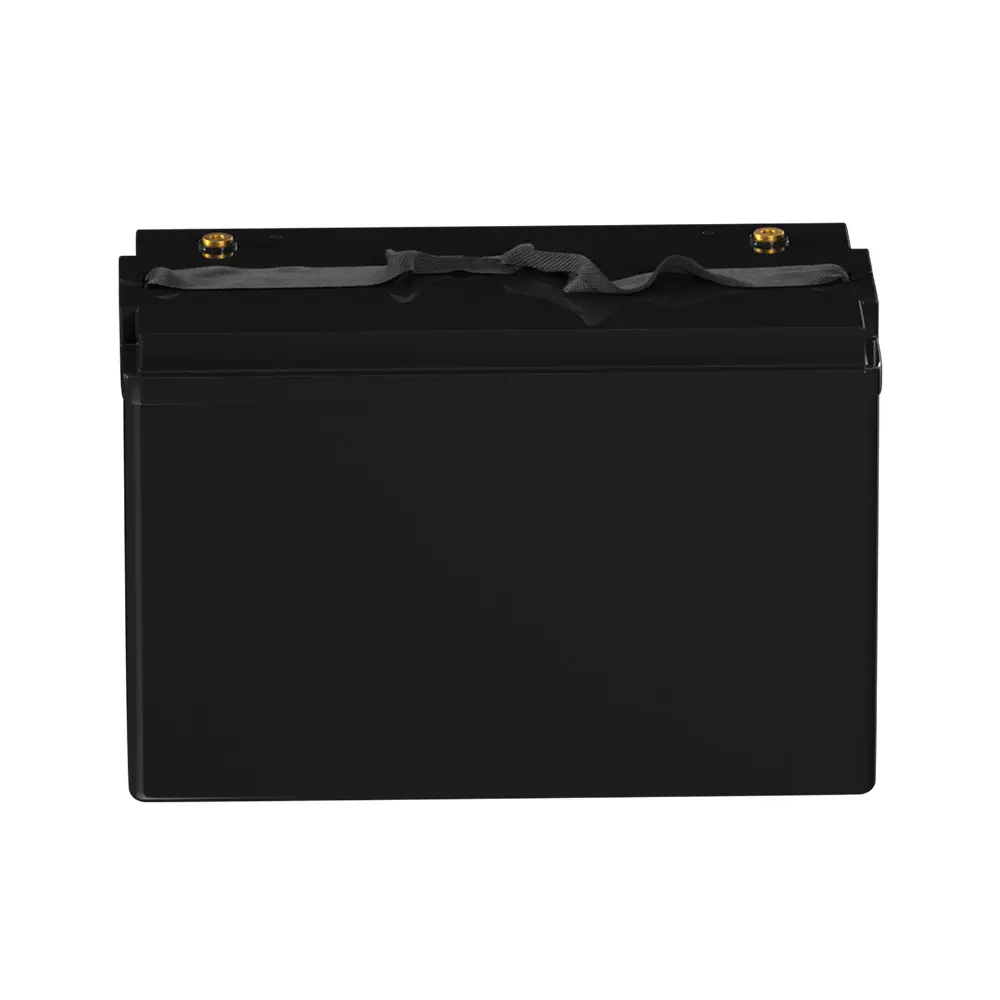

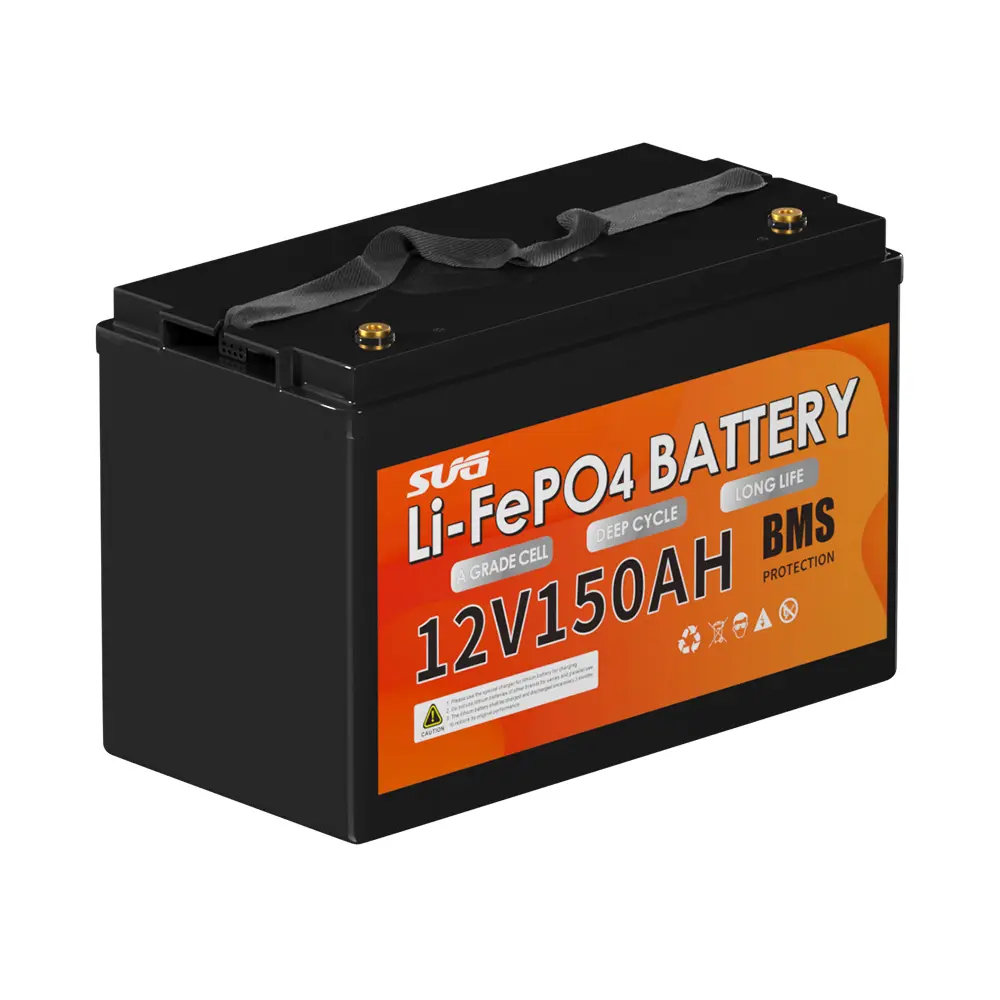

SBT-12V 150Ah Lithium Energy Storage Battery
Product Introduction
SBT Plastic LFP Energy Storage Battery use long working life LiFeP04 battery, and high performance BMs to protect andmanage the battery system, it has wider usage and longer life than traditional battery
Product features
1. LiFePo4 cell class A
2.50A/100A/150A/200A BMS for charge/di scharge
3.6000 cycle times@DoD80%
4.IP67 design
5.BT i s optional
6.With series/parallel function
7.LCD di splay i s optional
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
Product Parameters
Model | SBT-12.8150 |
Standard voltage | 12.8V |
Standard capacity | 150Ah |
Rated capacity | 1.92kWh |
Working voltage | 10-14.6V |
Standard charging current | 50A |
Standard discharging current | 100A |
Suggested DOD | 80% |
Cycle life | >6000 cycles |
IP Rating | IP67 |
Discharge operating temperature | -20℃-60℃ |
Charging operating temperature | 0℃-45℃ |
Communication | BT optional |
Display | LCD display optional |
Warranty | 5 Years |
Certificate | UN38.3/MSDS/CE/ROHS/FCC |
NW.(kg) | 15 |
GW.(kg) | 20 |
Product size (mm) | 330*172*216 |
Package size(mm) | 372*217*269 |
