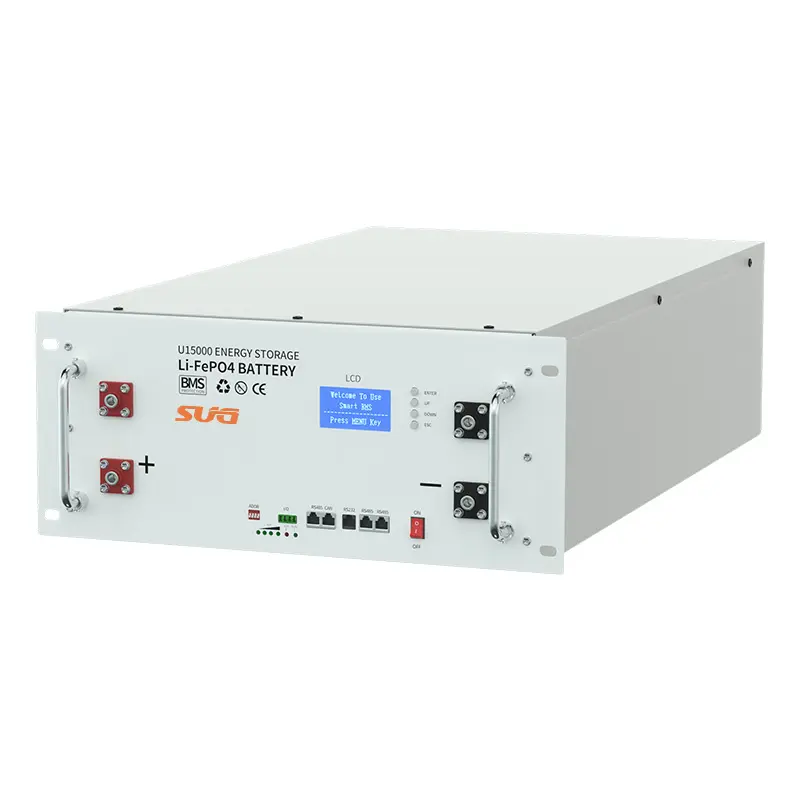

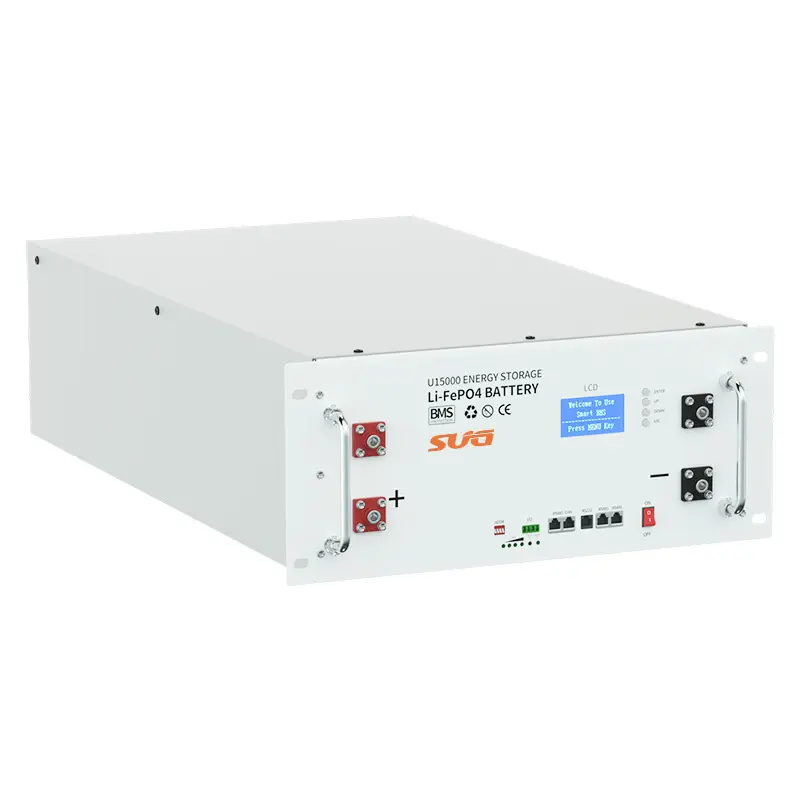

SBS-51.2V300Ah RackCabinet Mounted Lithium Energy Storage Battery
Product Introduction

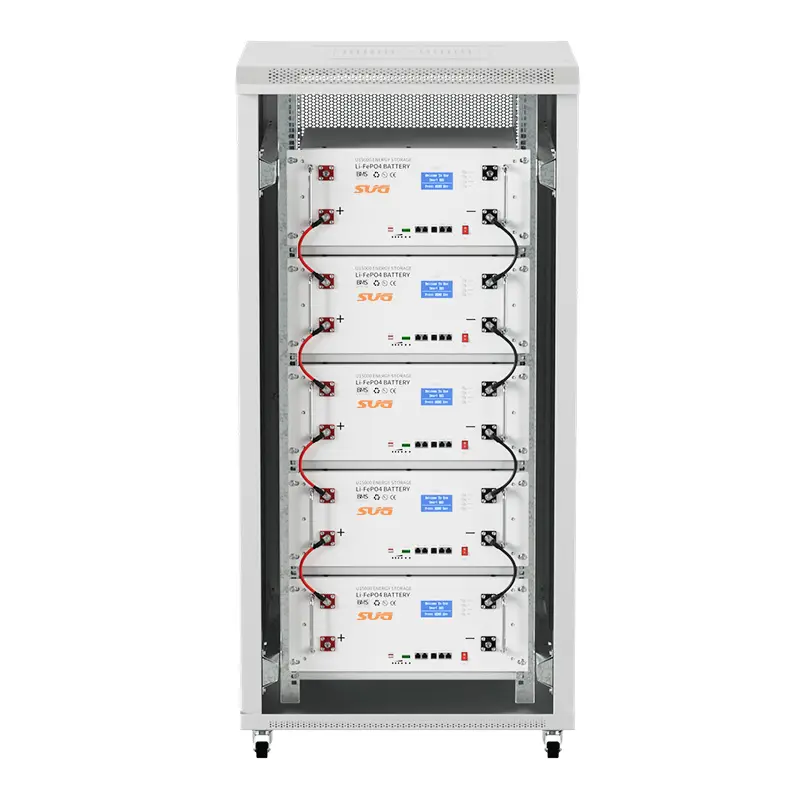

The SBS- Rack/Cabinet mounted lithium energy storage battery, uses high cycle lithium iron phosphate cells, high-performance BMS protection and management battery system, and can be combined into up to 15 battery modules in parallel. The capacity can be freely combined to meet various needs of households and industries.into up to 15 battery modules
Product features
1. Grade A LiFePO4 cell
2. Parallel support for 15PCS
3. Compatible with multiple inverter brands
4. 6000 cycles @ DOD80%
5. Bluetooth/WIFI optional
6. LCD display screen (touch screen optional)
7. BMS 100A/150A/200A optional
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
Product Parameters
| Model | SBS-51.2300 |
| Standard voltage | 51.2V |
| Standard capacity | 300Ah |
| Rated capacity | 15.36kWh |
| Working voltage | 43.2-57.6V |
| Standard charging current | 150A |
| Standard discharging current | 200A |
| Suggested DOD | 80% |
| Cycle life | >6000 cycles |
| IP Rating | IP20 |
| Discharge operating temperature | -20℃-50℃ |
| Charging operating temperature | 0℃-45℃ |
| Maximum parallel | 15PCS |
| Communication | RS232/CAN/RS485 (WIFI/BT optional) |
| Display | LCD display screen (touch screen optional) |
| Warranty | 5 Years |
| Certificate | UN38.3/MSDS/CE/ROHS/FCC |
| NW.(kg) | 110 |
| GW.(kg) | 129 |
| Product size (mm) | 790*480*200 |
| Package size（mm） | 850*540*440 |
