SDC DC to DC Dual Battery Charger
0102030405

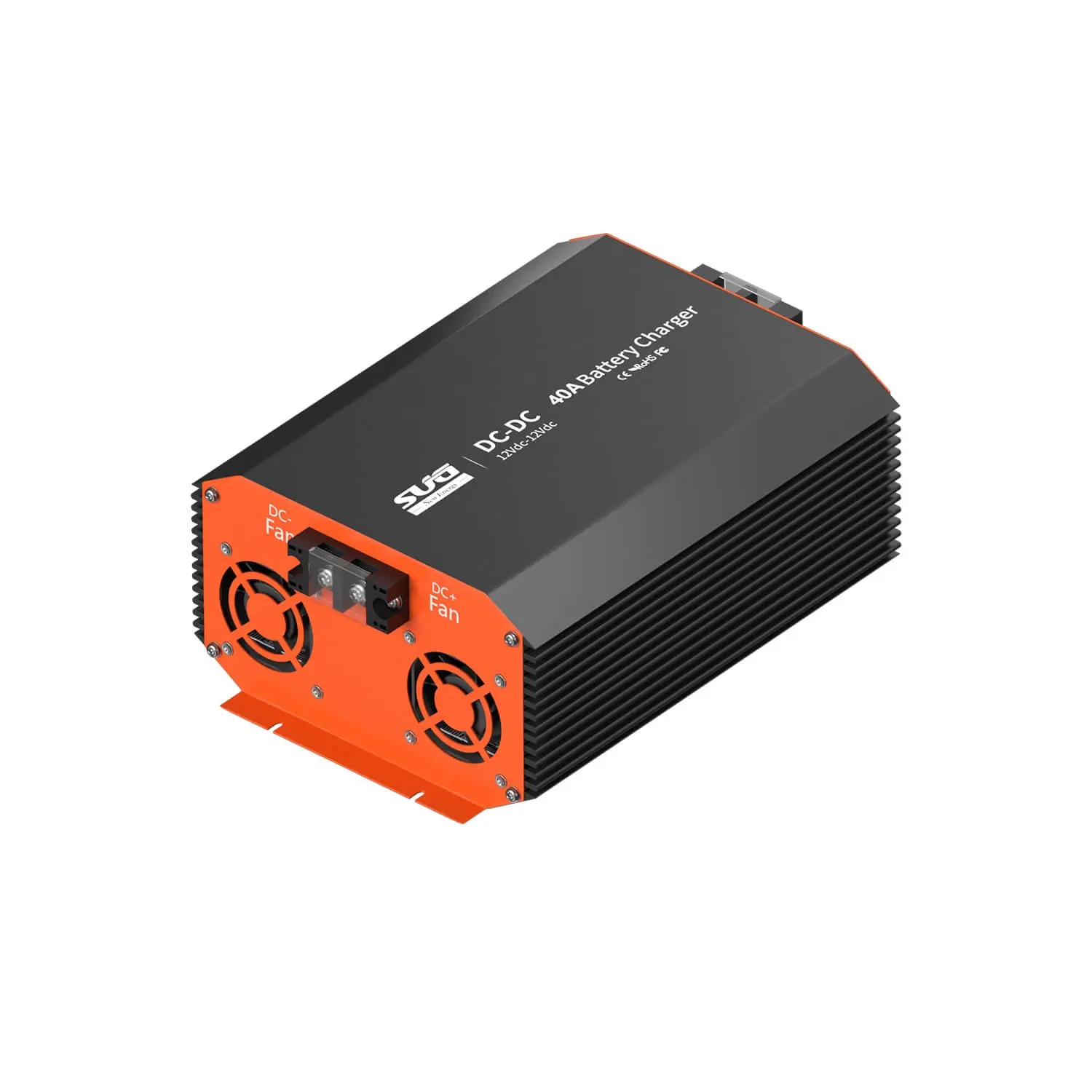

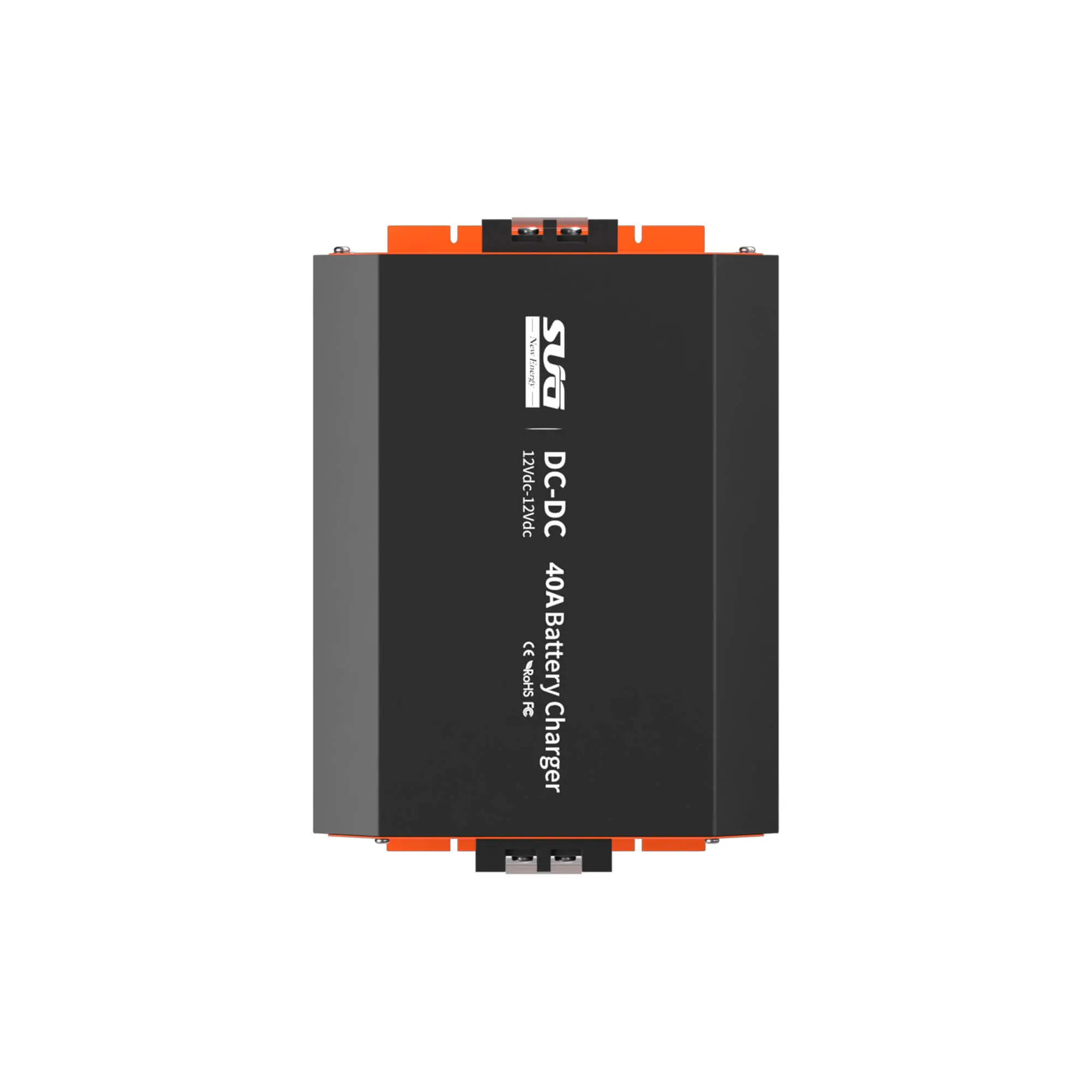

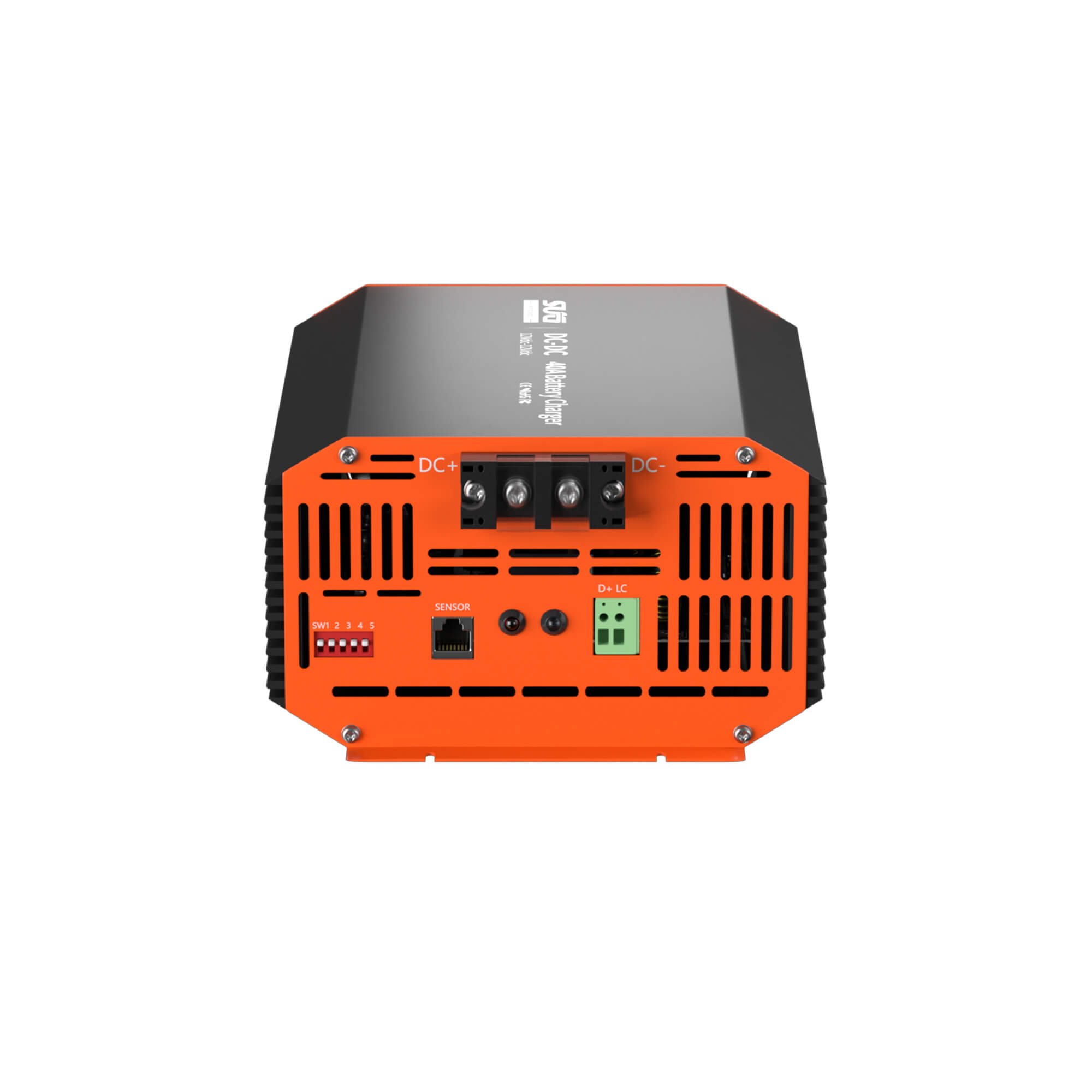

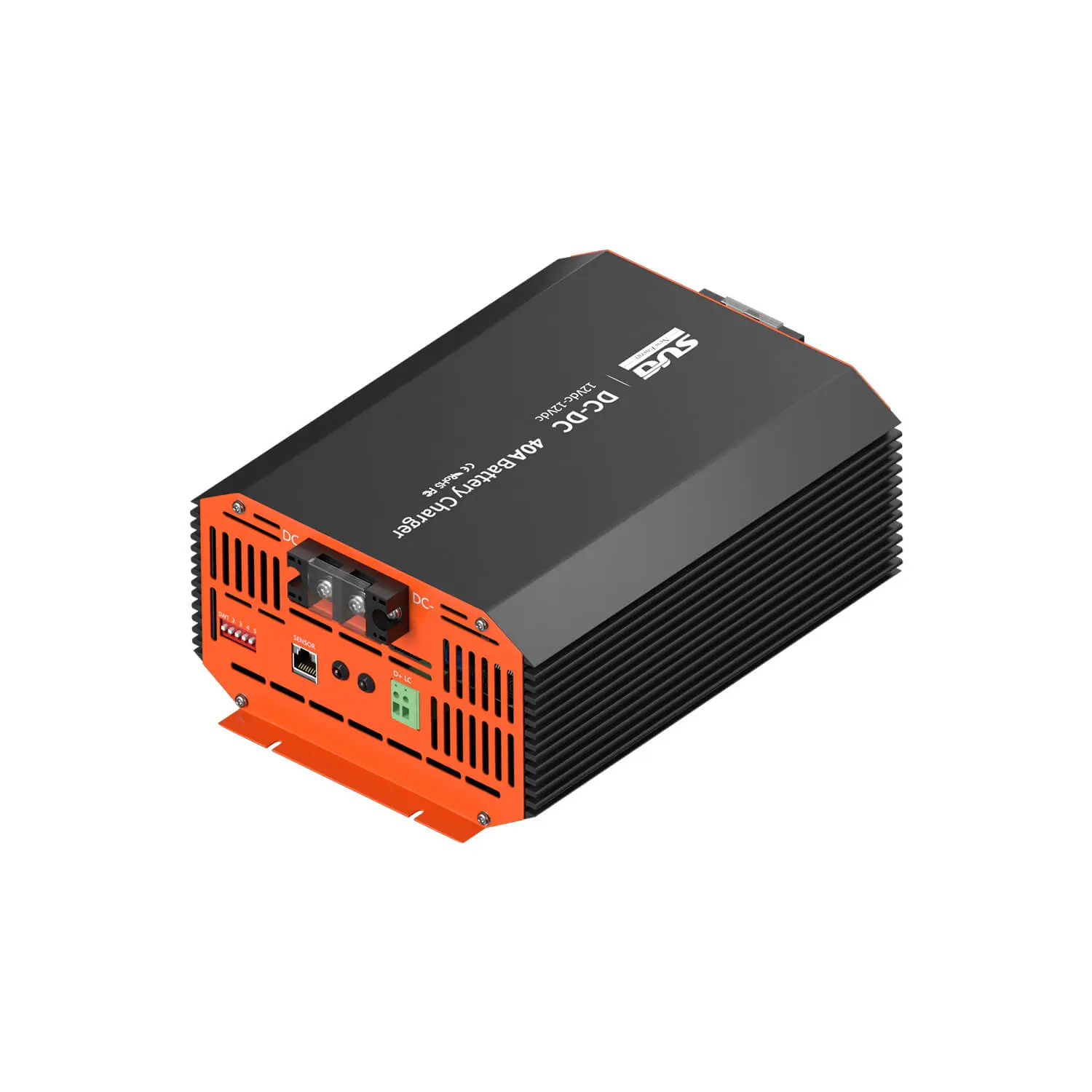

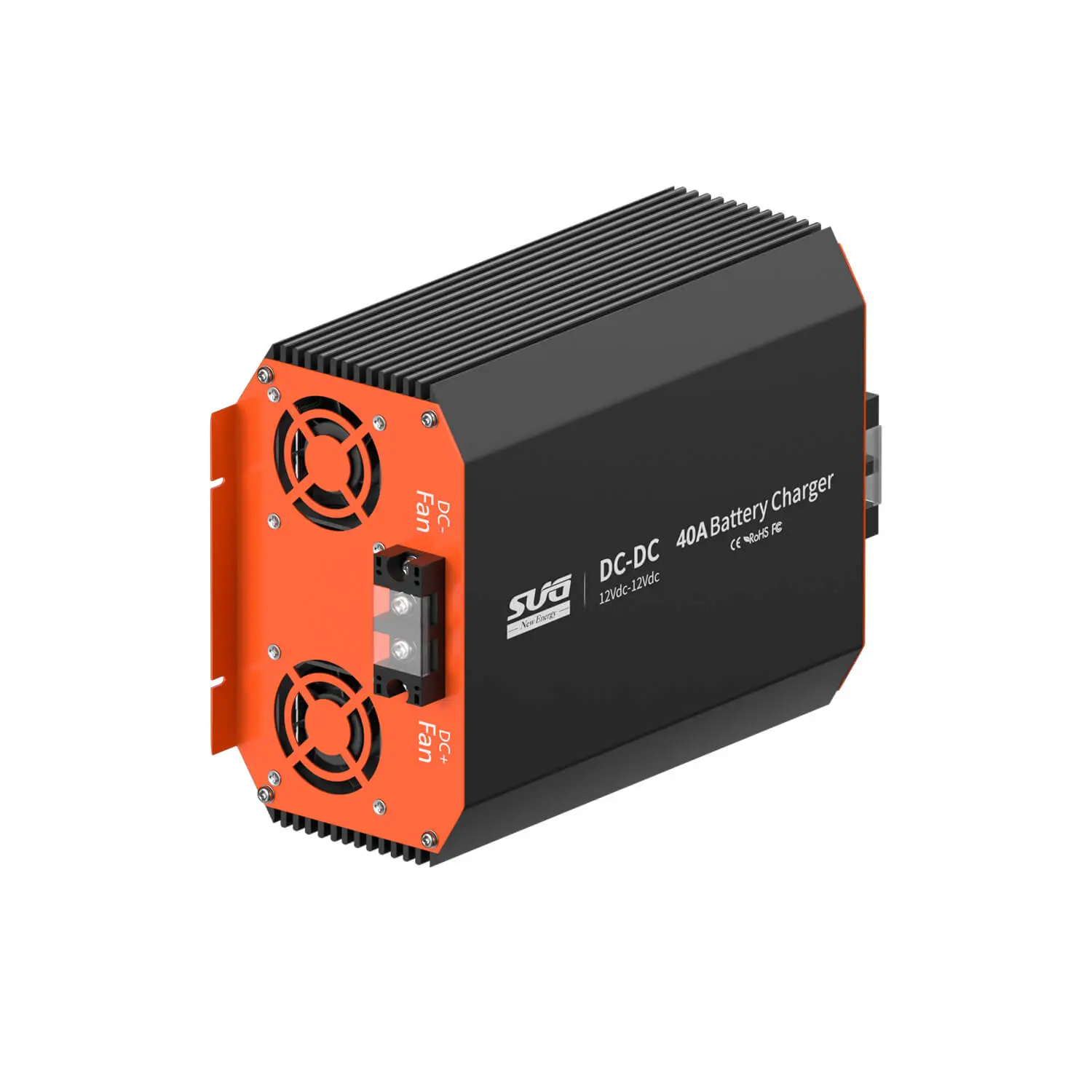

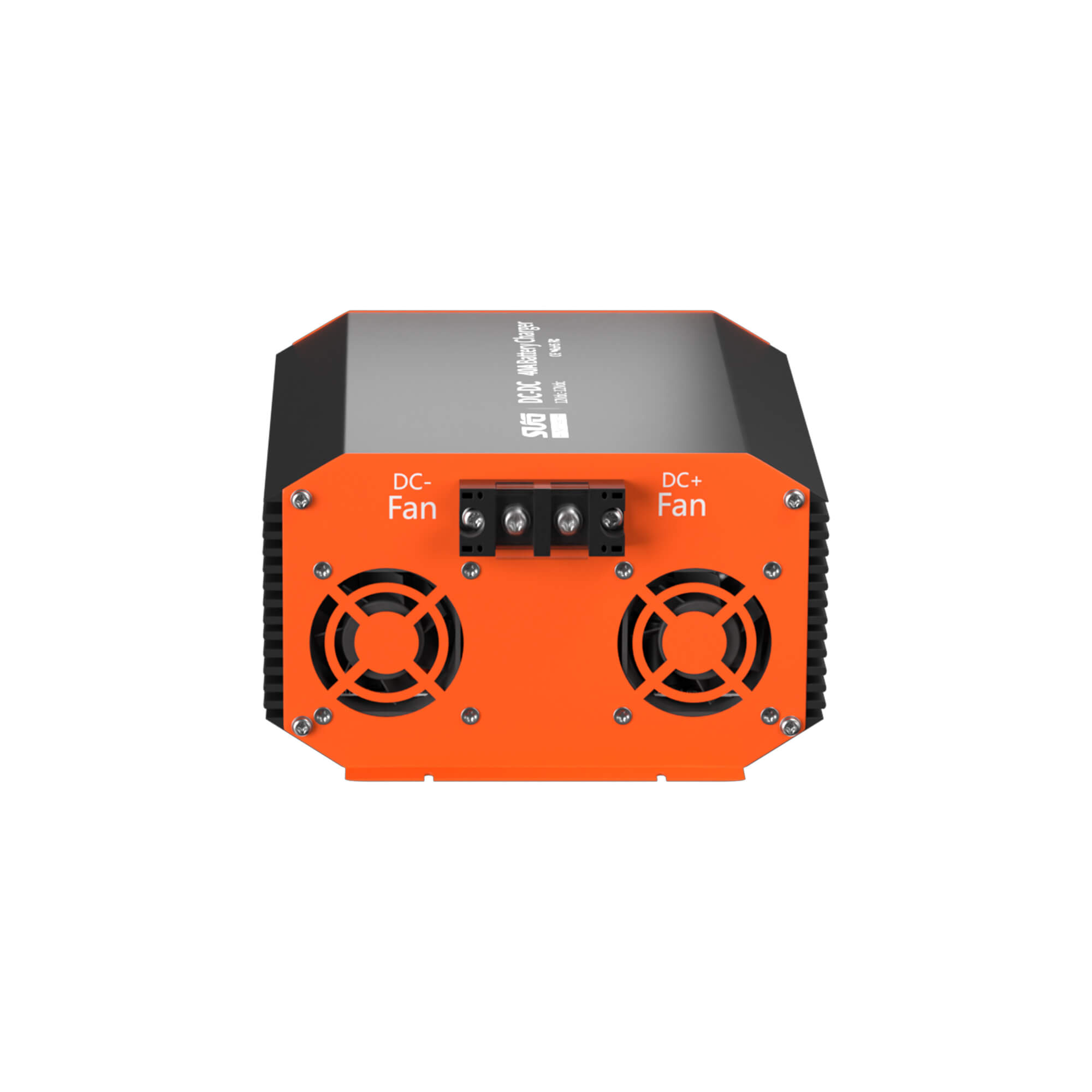

40A DC to DC Dual Battery Charger
Product Introduction
SDC DC-DC charger, capable of maintaining auxiliary battery system charging throughout the journey. DC-DC battery charger is designed specifically for dual battery systems, ensuring reliable performance The auxiliary battery system operates at peak efficiency for a longer period of time when disconnected from the power grid. When the engine is running, the DC-DC charger will safely charges the auxiliary battery pack. Supplements for RVs, ships, or any other off grid vehicles.
Product features
1. Multi-chemistry battery types ( flooded, gel, AGM, and lithium)
2. 3-stage charging (bulk, absorption , and float)
3. Smart protection features ( battery lsolation, over-voltage safety, overheat protection, and short circuit protection)
4. Overcomes voltage drop caused by long cable runs
5. Able to charge an auxiliary battery to 100% state of charge
6. Increases run time of loads, such as fridges and lights
7. Prolongs batter y life
Product Connection Diagram
Product Parameters
| Model | SDC-20A | SDC-30A | SDC-40A | SDC-60A |
| Nominal input Voltage | 12V | |||
| Input voltage range | 8V~16V | |||
| Charging current | 20A | 30A | 40A | 60A |
| Charging voltage | 13.2V~14.7V | |||
| Output | 250W | 360W | 500W | 750W |
| Efficiency up to | 0.9 | |||
| ldle power Consumption | <0.4A | |||
| Ambient humidity | ≤95%Non-Condensing | |||
| Residual rupple of Output voltage at Rated current | <50 mVeff | |||
| Ambient temperature For operation |
-20℃~50℃ | |||
| Net dimension(LxWxH) | 170*146*83mm | 170*146*83mm | 205*146*83mm | 242*146*83mm |
| Outer box size(LxWxH) | 220*210*155mm | 220*210*155mm | 250*210”155mm | 293*210*155mm |
| NW. (kg) | 1.19 | 1.19 | 1.55 | 1.87 |
| GW. (kg) | 1.5 | 1.5 | 1.81 | 2.15 |
| Certifcation | CE FCC ROHS | |||
| Protective function Specifcations | ||||
| Protections | High-voltage,low-voltage,high-temperature,short-circuit | |||
| Low voltage cut of | 8V | |||
| low voltage restart | 10V | |||
| High-voltage shutdown | 16V | |||
| High voltage restart | 15.5V | |||
